1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
Specifications
Brand Name :
Neutral
Model Number :
30u/9u/6u/3u/1u etc
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
2-5 working days
Packaging Details :
carton
Materal :
Diamond or Silicone carbid
Size :
127mm
Application :
Polishing
Dimension :
100 pcs/1 pack
Description
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film

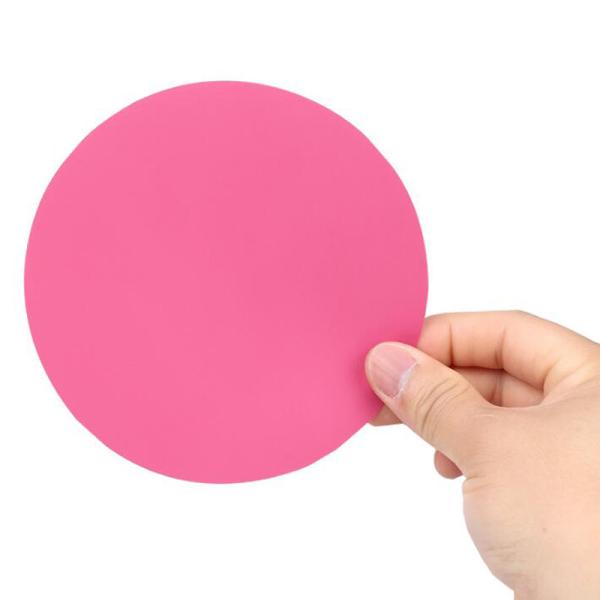

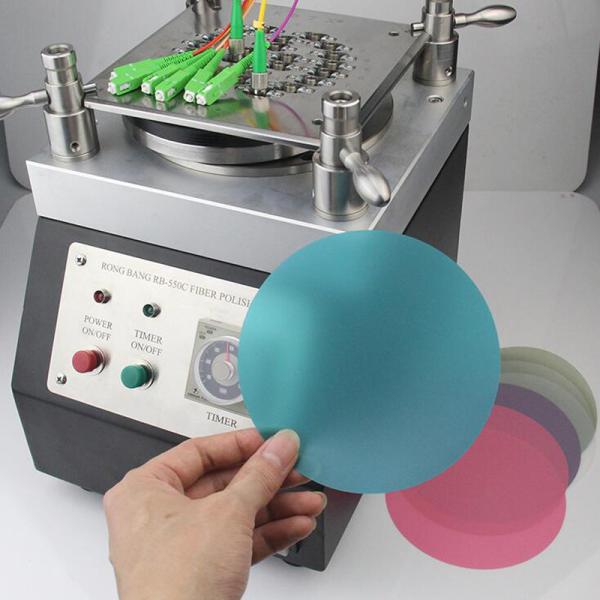

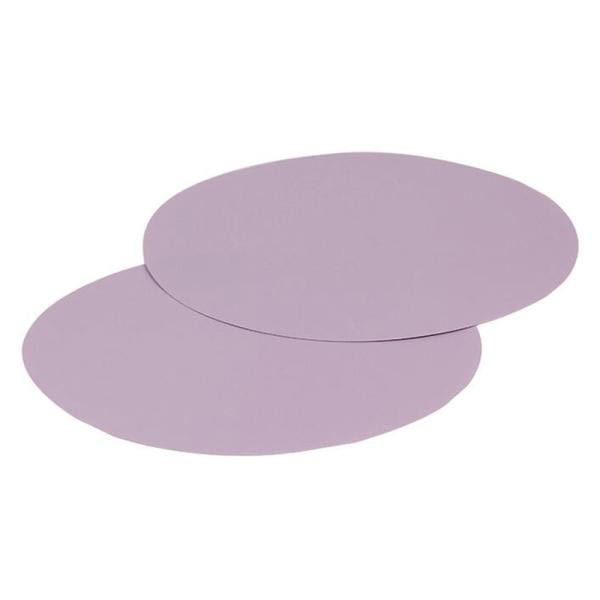

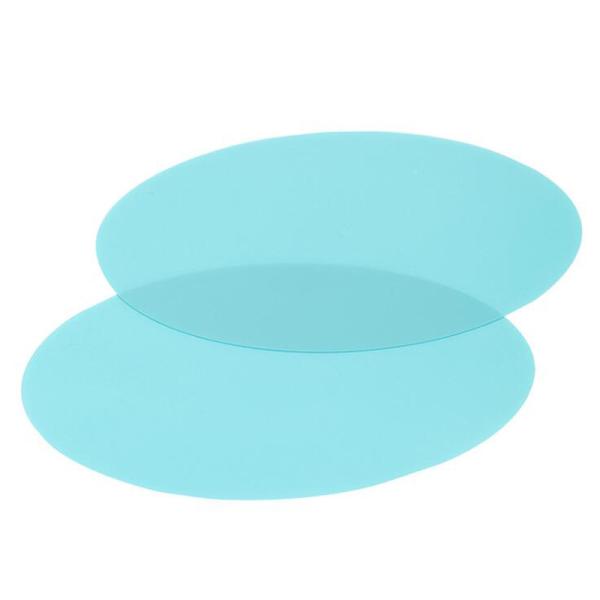

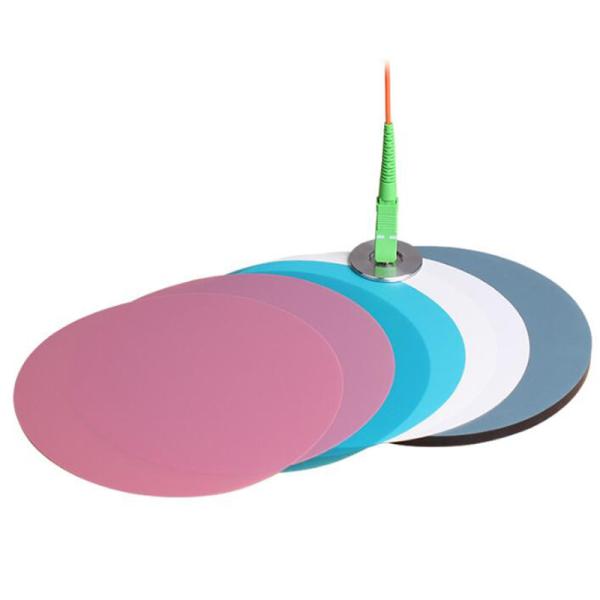

Fiber optic polishing film
Abrasive paper: get rid off the exceeded glue

Polishing film: 9um, 3um,1um polishing film

ADS polishing film:final procedure
1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film1um 3um 9um 30um Fiber Optic Diamond Polishing Film Round Type Fiber Polish Film
Polishing film procedure
Polishing Step

Polishing Film
Polishing Fluid
Thrust(Std.)
Polishing Time(Std.)
Polishing Film Life(Std.)
Adhesive removal(hand

polishing)
Abrasive paper
None
Approx 1 to 2kg
15 Sec
Dispose of every time
Grinding(1st polishing)
9 mic
Water
Point 2
50 Sec
30 times
Grinding(2nd polishing)
3mic
Water
Point 2
50 Sec
30 times
Grinding(3rt polishing)
1mic
Water
Point 3
50 Sec
30 times
Grinding(4th polishing)
ADS(0.05mic)
Water
Point 3
50 Sec
10 times

Features

1. Fiber Optic Polishing Film

2. Newly developed tapes for the fiber optics

3. High durability
4. Advantages of both fixed and dissociated polishing modes with the characteristics of high removal ratio & surface effects

5. Evenly-sprayed particles on coated surface
6. Good intensity & flexility, suitable for polishing on different facets
7. Suitable for polishing with dry, water or oil medium
8. The fiber polishing film is durable polishing rate compared to existing polishing films and offers economical operations
