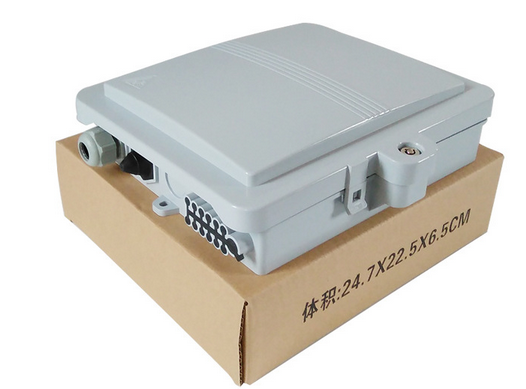

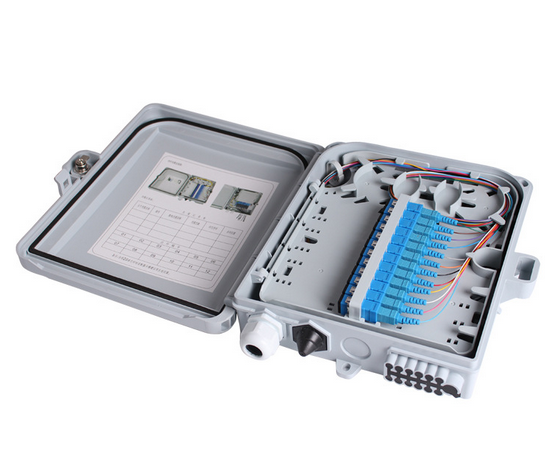

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
Specifications
Brand Name :
hanxin or OEM
Model Number :
6574004
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
Carton
Product name :
Fiber optic distribution splitter box
Application :
FTTH FTTB FTTX Network
Material :
ABS
Connector type :
SC
Description

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.

Product name 12 Cores Fiber Optic Distribution Box Protection grade IP65
Operating Temperature -40℃~60℃ Product Size 235*200*60mm
Working environment Indoor and Outdoor wall-mounted Packing quantity 10 or 20 boxes per carton
Function FTTH network building Net weight 0.8 kg
Features wet-proof,water-proof Gross proudct

0.9 kg

Feature

Industry Standard User Interface, be made of high impact plastic.


Anti-UV, Ultra violet resistant and rainfall resistant.


Up to 12 FTTH drops.


Wall and pole mountable.


2 inlet ports, 8~24 outlet ports.


Special cable fixed position, ensure the cable fixed pulled off force after not less than 50 N.


Job stress: 70 kpa to 108 kpa;


Using the temperature:- 40 ~ + 60 ℃


Relative humidity: ≤95% (+ 40 ℃).


Protection grade: IP55.

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box

Application


widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

12 Core Outdoor IP65 FTTH Products 8 Core Plug In Optical Termination Fiber Splitter Box
