Flame Retardant Single Mode Fiber Optic Cable G652D For Data Communication
Flame Retardant Single Mode Fiber Optic Cable G652D For Data Communication
Specifications
Brand Name :
hanxin
Model Number :
SM SX
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
400km/day
Delivery Time :
3-10working days according to the qty
Packaging Details :
yarn-beam and carton
Cable Diameter :
2.0mm/3.0mm
TBF Diameter :
900±50μm
Standard :
YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc;
Storage Temperature :
-20℃~+60℃
Operating Temperature :
-20℃~+60℃
Name :
single mode fiber optic cable
Description

Flame Retardant Single Mode Fiber Optic Cable G652D For Data Communication

· Description

indoor fiber optical cable is made by evenly applying strands of Aramid yarns as the strength member over tight buffer fibers and then is completed with a flame-retardant sheath.

· Characteristics

· Good uniformity of the outer diameter of tight buffer fiber and excellent strippability

· Good performance of flame-retardant

· Low induced attenuation within the operating temperature range

· Excellent geometrical dimension of the fiber

· Application

· Data communication

· Making connector

· Installation: riser, plenum, etc.

· Places where waterproof is not strictly required

· Making jumper, pigtail and building distribution

· Description

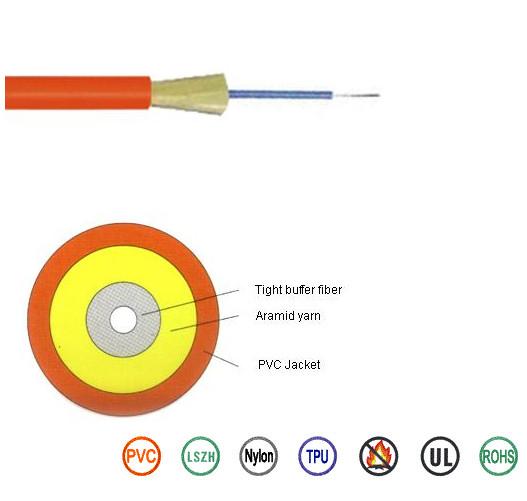

· 1fiber, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.

·Standards

· Comply with Standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.

Flame Retardant Single Mode Fiber Optic Cable G652D For Data Communication

·Cable Code

SXC-III SXC-II SXC-I
Cable Diameter 2.8±0.2mm 2.0±0.2mm 1.6±0.2mm
Cable Weight 6.9kg/km 5.9kg/km 4.0kg/km
TBF Diameter 900±50μm 900±50μm 600±50μm


·Mechanical Characteristics

Tensile Strength Long term 80N 60N
Short term 150N 120N
Crush Resistance Long term 100N/100mm
Short term 500N/100mm
Bending Radius Dynamic 20×D ( Cable Diameter)
Static 10×D ( Cable Diameter)


·Optical Characteristics

50/125μm 62.5/125μm G.652 G.655
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.45dB/km ≤0.50dB/km
@1550nm ≤0.30dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Attenuation at temperature cycling Δα(-20℃~+85℃) @1300nm ≤0.25dB/km ≤0.25dB/km
@1550nm ≤0.10dB/km ≤0.15dB/km


·Environmental Characteristics

Transport Temperature -20℃~+60℃
Storage Temperature -20℃~+60℃
Installation Temperature -5℃~+50℃
Operating Temperature -20℃~+60℃
