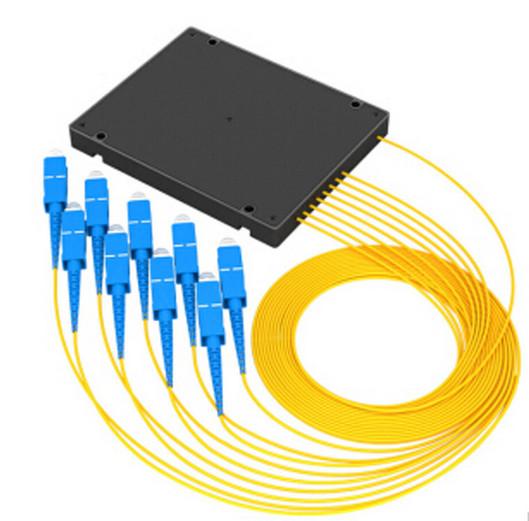

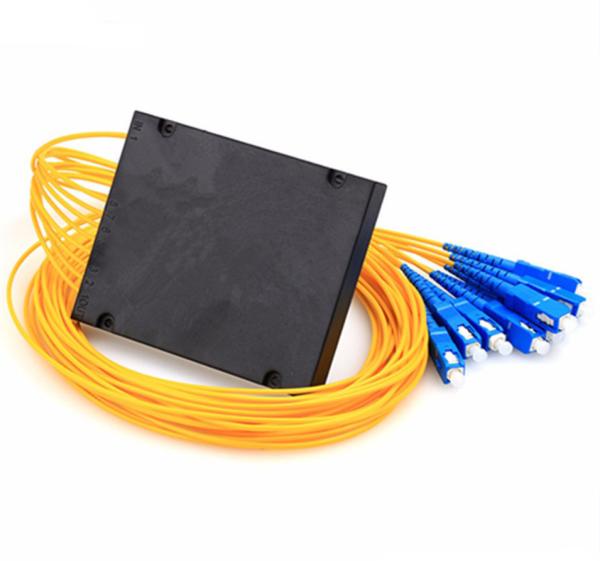

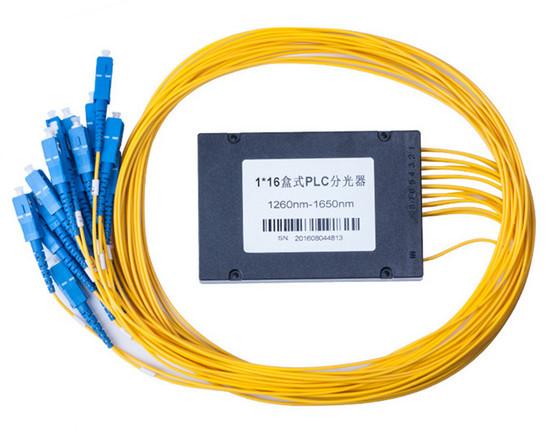

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
Specifications
Brand Name :
hanxin or OEM
Model Number :
1*8 ABS box splitter
Certification :
ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000PCS Per month
Delivery Time :
3-15 working days
Packaging Details :
pp bags or plastic box
Cable diameter :
2.0mm or customized
Type :
1*2/1*4/1*8/1*16/1*32/1*64
Application :
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution
Connector type :
SC
Wavelength :
1260-1650nm
Fiber length :
Customized
Description

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32. PLC Splitters are availble with 900µm loose tube singlemode fiber and terminated or unterminated as per your needs. Unconnectorized PLC splitters come with no connectors for easy splicing or connectorization. Connectorized PLC Splitters are available with your choice of Fiber Optic Connectors: LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.

Technical specifications

Wavelength(nm) 1260-1650
Parameters 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32
Insertion Loss(with connector)(dB) ≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤17.7
Insertion Loss(W/O connector)(dB) ≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤18.2
Uniformity (dB) ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4

Size(bare bype)

(H×W×L)(mm)

 4×4×50 4×7×50 4×12×60 4×4×50 4×7×50
Return Loss(dB) >50
Directivity(dB) >55
Temperature Range(°C) -40~+75
Storage Temperature(°C) -40~+85

Notes:

1. Specified without connectors.

2. Add an additional 0.2dB loss per connector

Key Features

1) Low Insertion loss

2) Low PDL

3) Compact Design

4) Good channel-to-channel uniformity

5) Wide Operating Wavelength: 1260-1650nm

6) Wide Operating Temperature: -40°C - 85°C

7) High Reliability and Stability

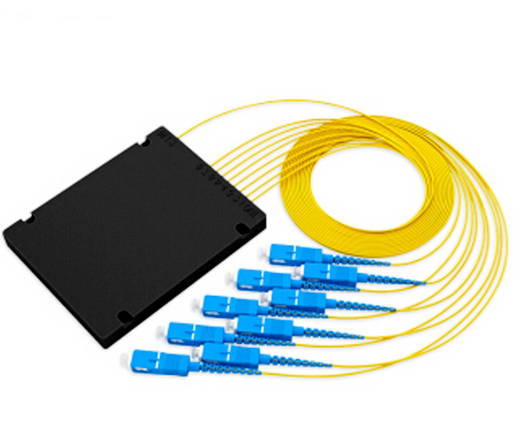

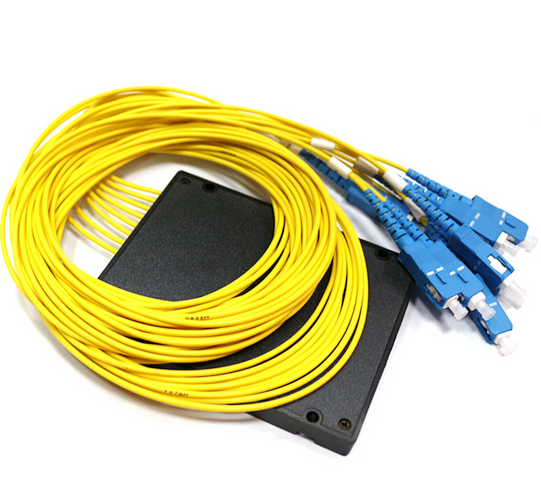

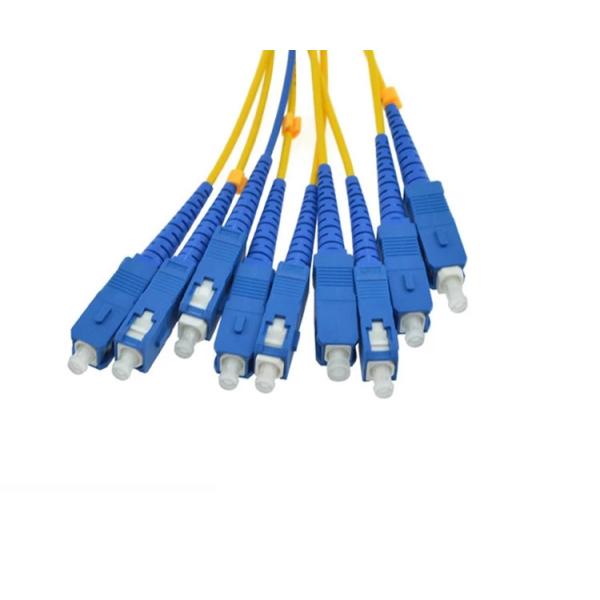

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

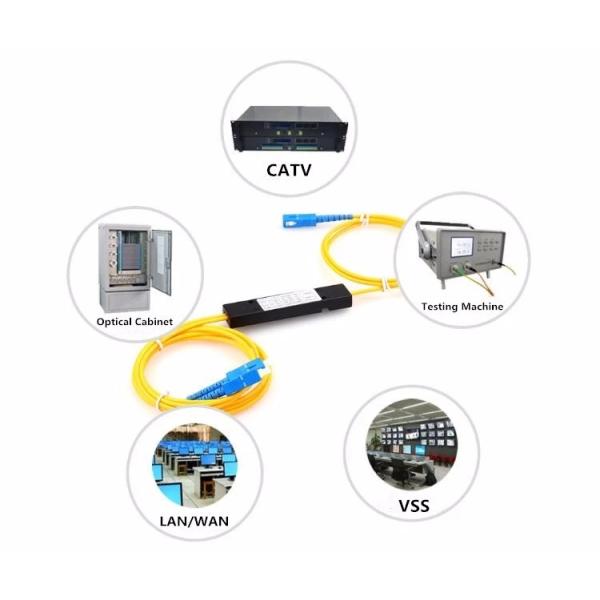

Application

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector

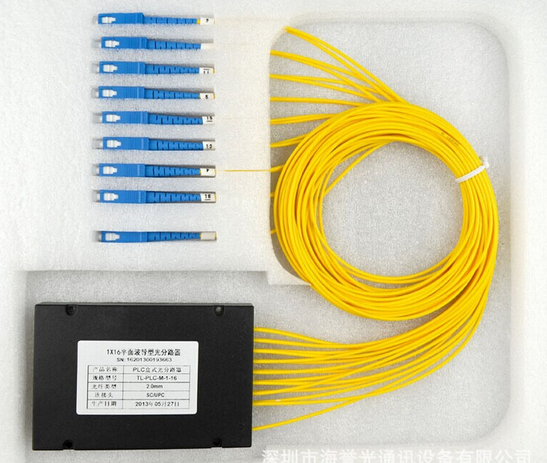

Packaging

1X8 ABS Coupler Fiber Optic Plc Splitter 2.0mm Cable SC APC PC UPC Connector
