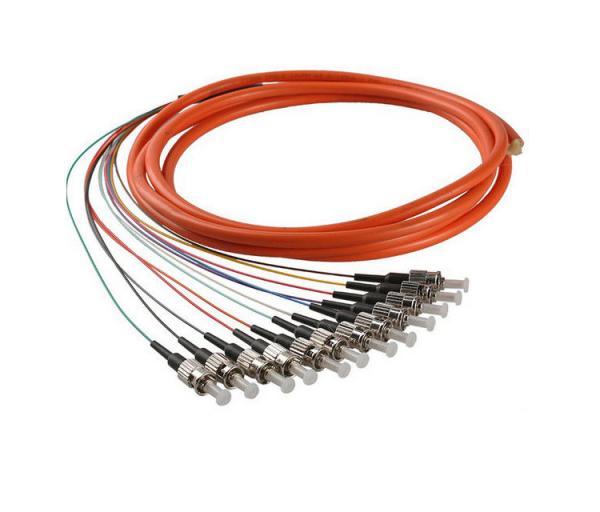

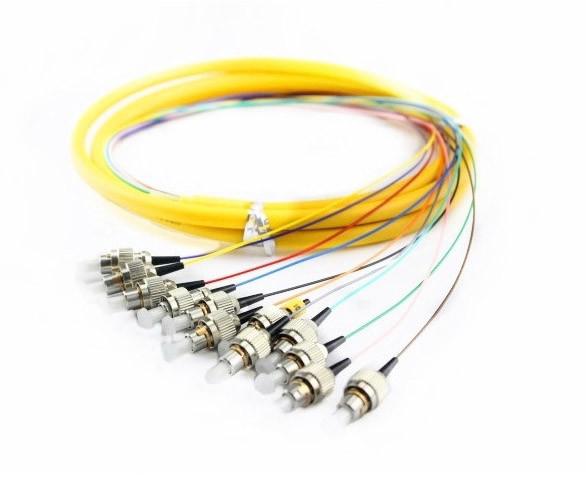

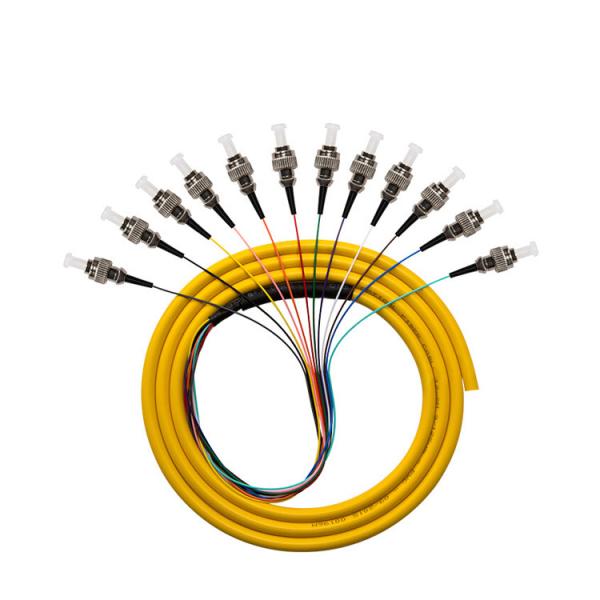

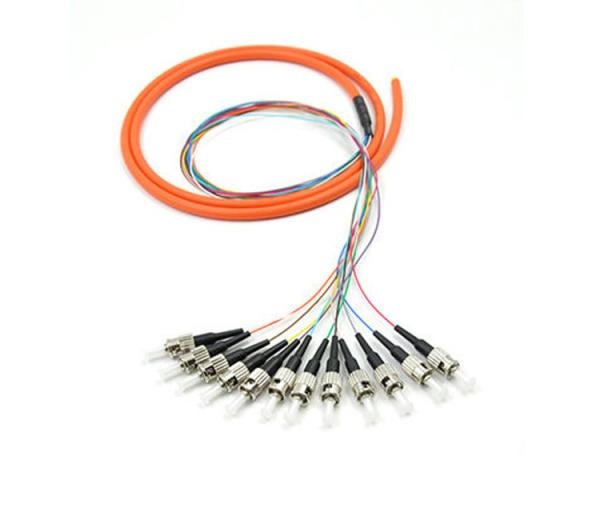

Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector
Specifications
Brand Name :
Hanxin or OEM
Model Number :
FCPC
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
pp bag or plastic box
Fiber type :
Single Mode Fiber
Connector Color :
Black
Fiber count :
12 cores
Length :
Custom
Jacket material :
PVC/LSZH
Application :
Building network access
Description

Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector

A fiber pigtail is a single,short,usually tight-buffered,optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end.

The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk "breaks out" the multi-fiber cable into its component fibers for connection to the end equipment.

Pigtails can have female or male connectors. Female connectors could be mounted in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.

Feature

  1. Adopts high precision ceramic ferrule with good concentricity;
  2. Based on advanced termination facilities & process, to deliver good geometry characteristics of apex offset & radius of curvature & fiber height;
  3. 100% inspected for optic characteristics & fiber end face finish;
  4. Low insertion loss & return loss, clean and scratch-free end faces;
  5. Connectors SC/ST/FC/LC/MU/E2000/LX.5/DIN/D4/SMA/MTRJ(only in duplex) in option;
  6. 900um tight buffered cable as standard type, jacketed cable are also available;
  7. Many standard colors are optional for cable jacket & connector boots;
  8. Fire rating cables are in option with OFNR, LSZH & OFNP;
  9. Good performance endurance under circumstances changing.

Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature °C -40~75 -40~75 -40~75 -40~75
Storage temperature °C -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9

Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector

Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector

Custom 12 Core Fiber Optical Breakout Pigtail Patch Cord FCPC Connector

Applications

1. Optical fiber pigtail, also named

2. CATV

3. Optical fiber communication systems

4. Optical fiber data transmission

5. Building network access

6. Cabling system, ODF

7. FTTx applications
