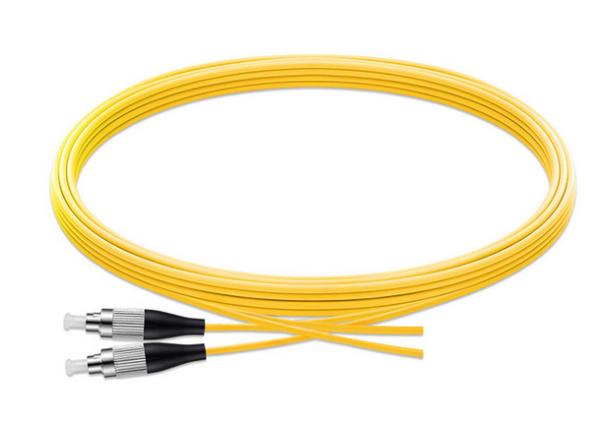

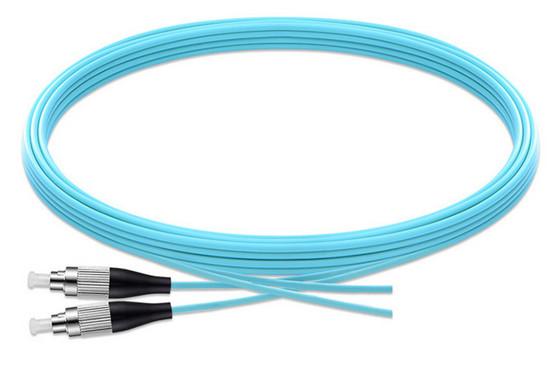

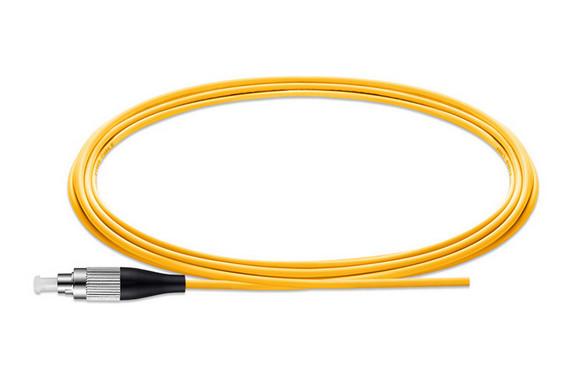

Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style
Specifications
Brand Name :
Hanxin or OEM
Model Number :
FCPC
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
pp bag or plastic box
Fiber type :
Single Mode Fiber
Connector Color :
Black
Fiber count :
1/2 cores
Length :
as your required
Jacket material :
PVC/LSZH
Application :
FTTH FTTB FTTX Network,CATV,cabling system,network
Description

Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style

fiber optic pigtail is a fiber optic cable that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

Feature

1. Low insertion loss, high return loss

2. Good compatibility

3. High precision of mechanical dimensions

4. High reliability & stability

5. PC, APC, UPC optional, cable length optional

6. Options available for cable colors

Specification

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3
Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

Product list

Boot Connector Fiber Type Cable number Ferrule Connector

0.9mm

2.0mm

3.0mm

LC

FC

SC

ST

MU

D4

MTRJ

MPO

DIN

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

PC

APC

UPC

1M

2M

3M4M

5M

.........

Customized

Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style

Low Insertion Loss Fiber Optic Pigtail Fusion Splicing FC PC SM Style

Application:

Gigabit Ethernet; Active device termination;
Telecommunication networks; Video; ODF
Multimedia; Premise installations; Local area networks;
FTTH FTTX applications; CATV
