Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
Specifications
Brand Name :
Hanxin or OEM
Model Number :
LCPC
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
pp bag or plastic box
Fiber type :
Single Mode Fiber
Cable diameter :
0.9mm/2.0mm,etc.
Fiber count :
1/2 cores
Length :
as your required
Jacket material :
PVC/LSZH
Application :
FTTH FTTB FTTX,network,etc.
Description

Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper

fiber optic pigtail is a fiber optic cable that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

Feature

1. Low insertion loss, high return loss

2. Good compatibility

3. High precision of mechanical dimensions

4. High reliability & stability

5. PC, APC, UPC optional, cable length optional

6. Options available for cable colors

Specification

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3
Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

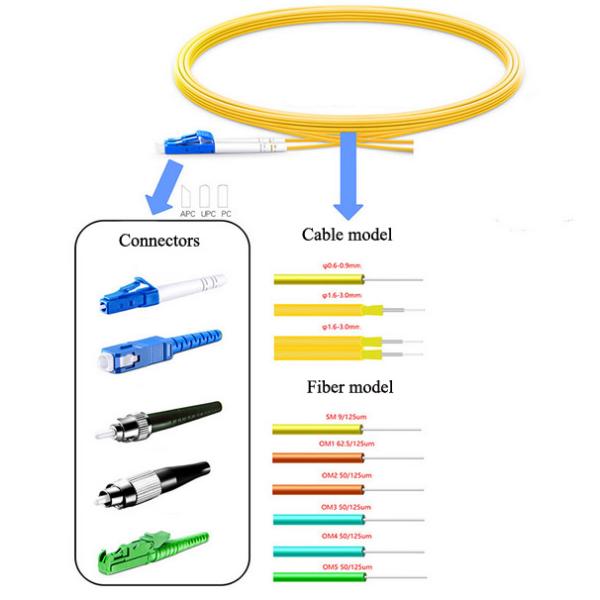

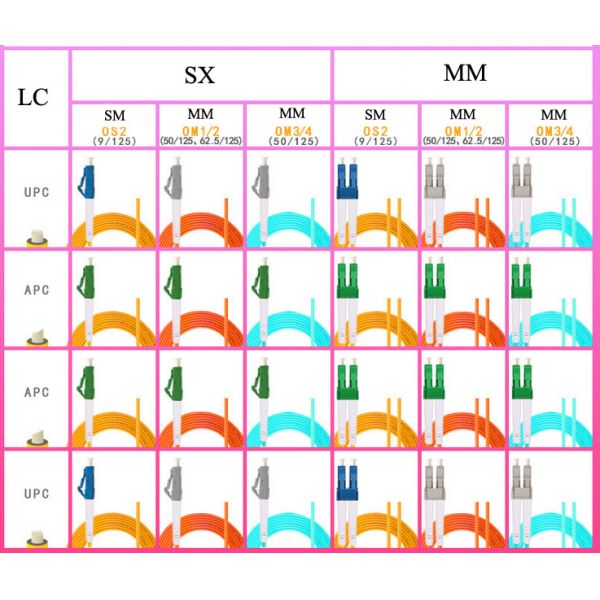

Product list

Boot Connector Fiber Type Cable number Ferrule Connector

0.9mm

2.0mm

3.0mm

LC

FC

SC

ST

MU

D4

MTRJ

MPO

DIN

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

PC

APC

UPC

1M

2M

3M4M

5M

.........

Customized

Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper

Application:

Gigabit Ethernet; Active device termination;
Telecommunication networks; Video; ODF
Multimedia; Premise installations; Local area networks;
FTTH FTTX applications; CATV

Fusion Splicing Fiber Optic Pigtail LC PC SM 1m / 3m / 5m Fiber Optic Jumper
