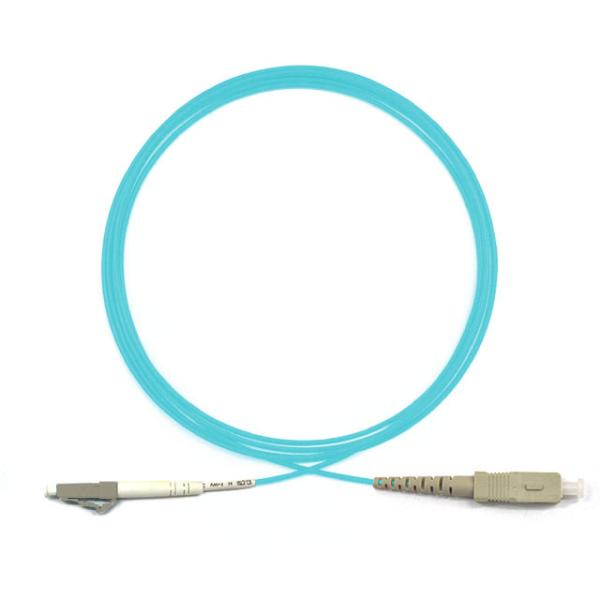

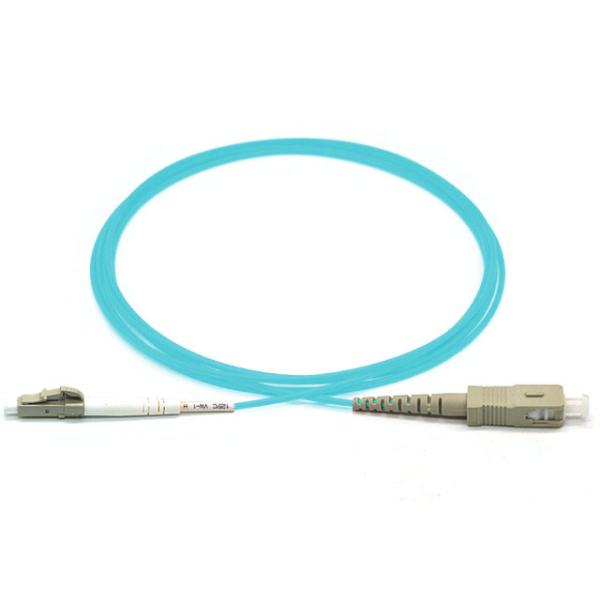

LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
Specifications
Brand Name :
hanxin or OEM
Model Number :
LC-SC
Certification :
ROHS, ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
PP bag and carton
Fiber Type :
OM3
Connector color :
Beige
Feature :
Low Insertion loss
Cable jacket :
PVC/LSZH
Application :
FTTX PON CATV
Description

LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors

1. Description

LC-SC OM3 fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

2. Feature

1). Low Insertion loss

2). High return loss

3). Good Repeatability

4). Good Interchange

5). Excellent Environmental Adaptability

3. Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness

4. Specification

Type Standard,Master

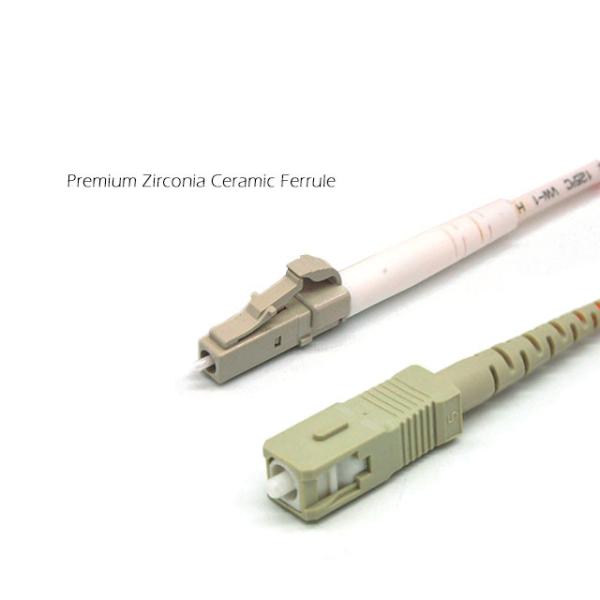

Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3

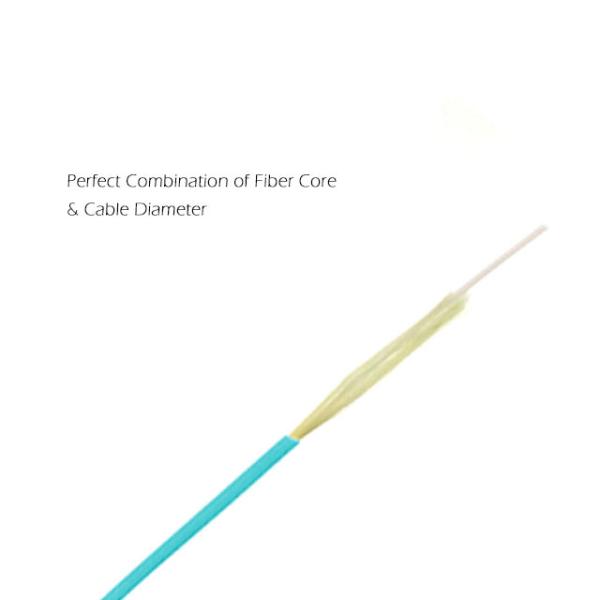

Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

5. Product list

Boot Connector Fiber Type Cable number Ferrule Connector

0.9mm

2.0mm

3.0mm

LC

FC

SC

ST

MU

D4

MTRJ

MPO

DIN

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

PC

APC

UPC

1M

2M

3M4M

5M

.........

Customized

LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors

LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors

LC SC PC / UPC OM3 Fiber Optic Patch Cord 10G Multimode 2.0mm 3.0mm With Connectors
