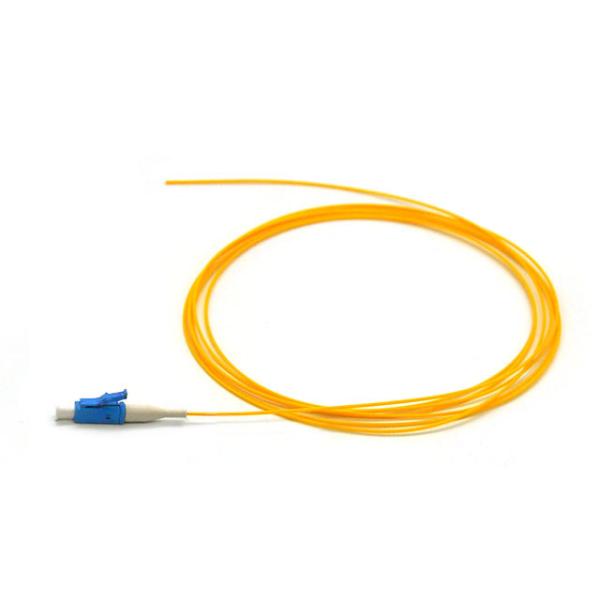

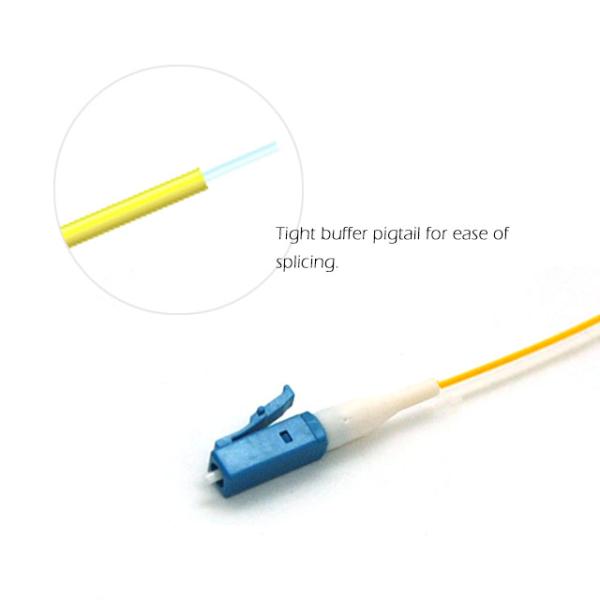

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic
Specifications
Brand Name :
Hanxin or OEM
Model Number :
LCUPC 0.9mm
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
pp bag or plastic box
Fiber type :
Single Mode Fiber
Connector Color :
Blue
Fiber count :
1 core
Length :
as your required
Jacket material :
PVC/LSZH
Cable diameter :
0.9mm
Description

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Description

Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

Main Features

Low insertion loss and back reflection loss

Good exchangeability
Good Durability
High temperature stability

Specifcation

Type Single Mode(UPC) Single Mode(APC) Multi Mode(UPC)
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC≥50dB APC≥60dB /dB
Test Wavelength 1310/1550nm 850/1310nm
Connector Type FC,SC,ST, LC, E2000, MU, MTRJ,DIN,D4, SMA…
Ferrule Material Zirconia Ceramic
Ferrule Concentricity <0.5μ or <1μ <1μ
Jacket Materials PVC, LSZH
Fiber Type

9/125-G652D

9/125-G655

9/125-G657A,G657A2,G657B2,G657B3

…

62.5/125-OM1

50/125-OM2

50/125-OM3

50/125-OM4

50/125-OM5
Fiber Brand YOFC, Corning...
Cord Type Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores...
Cable Diameter 0.9mm, 2.0mm, 3.0mm....
Length Customized

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

LC UPC Simplex Fiber Optic Pigtail Singlemode 0.9mm One Core Zirconia Ceramic

Product tags

optic ceramic ferrule

,

fiber optic ceramic ferrule

,

high quality cubic zirconia
