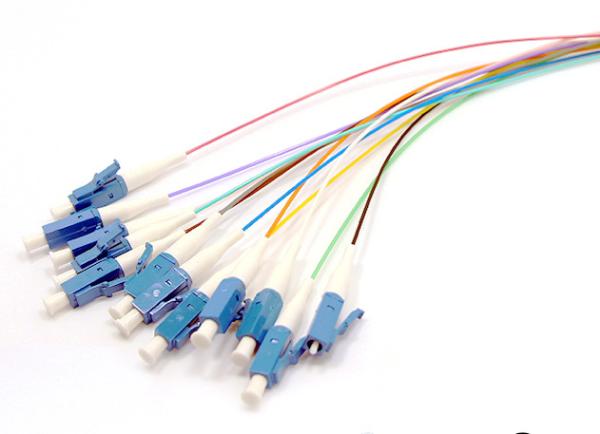

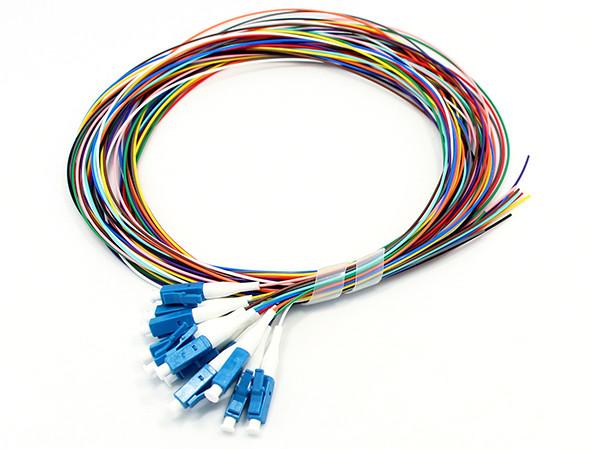

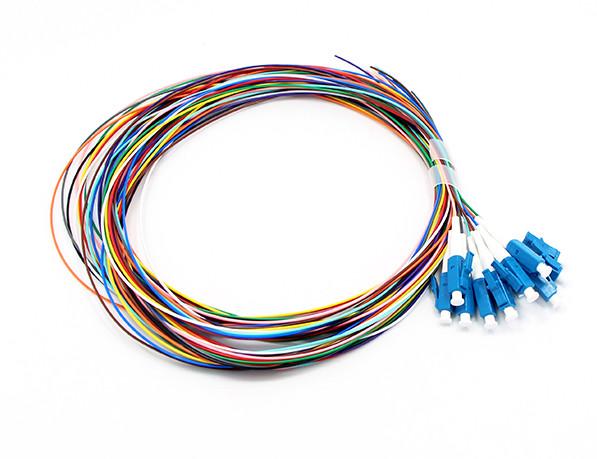

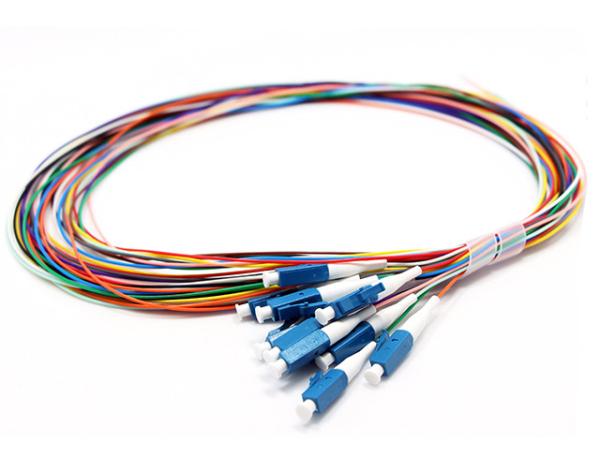

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
Specifications
Brand Name :
Hanxin or OEM
Model Number :
LCUPC 12 color
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
pp bag or plastic box
Fiber type :
Single Mode Fiber
Color :
12
Fiber count :
12 Cores
Length :
as your required
Jacket material :
PVC/LSZH
Cable diameter :
0.9mm
Description

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex

Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Features:

Ø Low insertion loss, Low back reflection loss

Ø Flexible and easy to strip fiber buffering

Ø Identifiable fiber buffer colors under all lighting conditions

Ø Reduces installation time

Ø Avoids incorrect patching by possible fiber flipping

Ø Clean and Scratch-Free End Face

Ø Proportional geometric test is applied to the normal production.

Ø 100% interferometer check is available under special requirement.

Products info

Connector A LC Connector B Unterminated
Fiber Category Single-mode (G657A1&A2) Fiber Count Simplex
Polish PC Cable Diameter 0.9mm
Jacket Material PVC/LSZH/OFNR/OFNP Jacket Color 12 different colors
Wavelength 1310nm and 1550nm Durability >1000 Times
Insertion loss ≤0.3dB Interchangeability ≤0.2dB
Return loss ≥60dB Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C

Geometric Specification (only for 3D interferometer tested)

Test items Connectors PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 50 nm
Angular Offset ------ 8°± 0.2°

CUSTOM option

OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex

Physical Information

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex

Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm

Fiber Optic Pigtail for Fusion Splicing

Fiber pigtail cables provide a fast way to make factory terminations in the field.

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex

Package Method

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex

How to Choose The Right Fiber Optic Cable Type?

PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Designation Fiber Dia.(μm) Type Fast Ethernet 100BASE-FX 1 Gigabit Ethernet 1000BASE-SX 1 Gigabit Ethernet 1000BASE-LX 10Gbps Ethernet 10GBASE 40Gbps Ethernet 40GBASE SR4 100Gbps Ethernet 100GBASE SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters 33 Meters Not supported Not supported
OM2 50/125 Multimode 2000 Meters 550 Meters 550 Meters 82 Meters Not supported Not supported
OM3(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 300 Meters 100 Meters(SR4) 100 Meters(SR4)
OM4(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 400 Meters 150 Meters(SR4) 150 Meters(SR4)
Singlemode 9/125 Singlemode 2000 Meters 5km at 1310nm 5km at 1310nm 10km at 1310nm N/A

N/A

12 Color Fiber Optic Cable Pigtail Set Singlemode G652D G657A1 LCUPC SM Simplex
