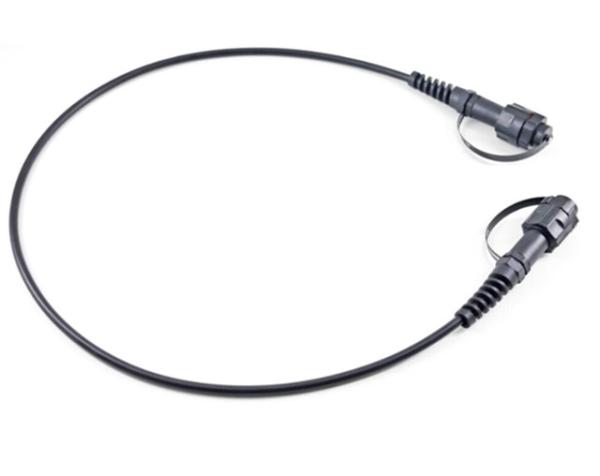

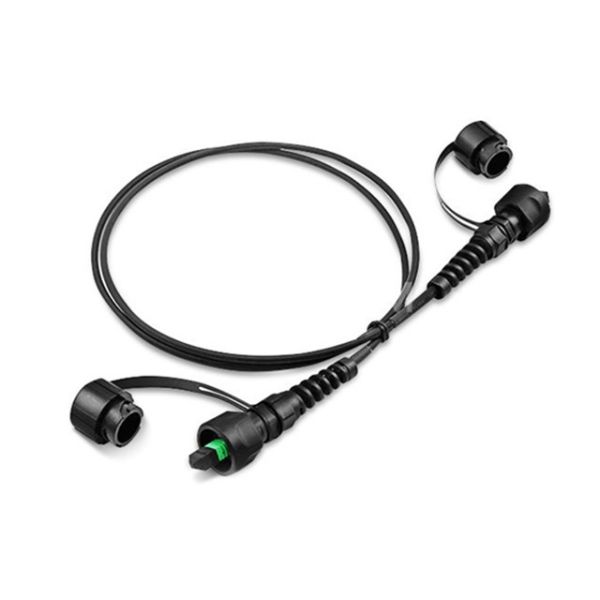

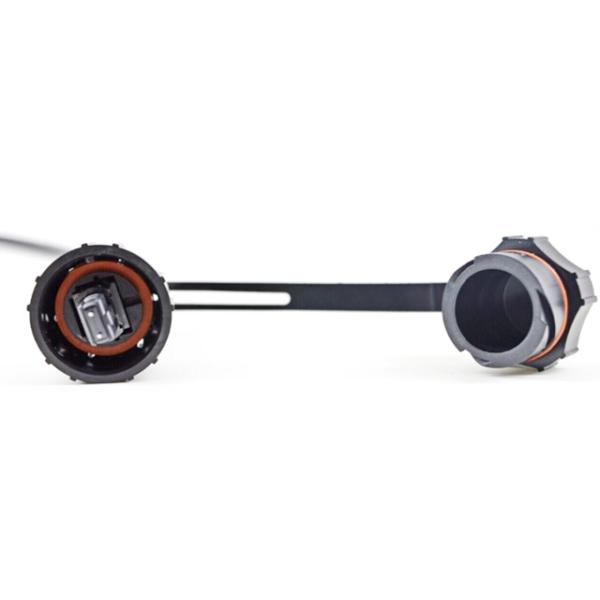

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
Specifications
Brand Name :
Hanxin or OEM
Model Number :
ODVA-MPO
Certification :
ROHS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000PCS per week
Delivery Time :
3-7 working days
Packaging Details :
Carton
Product Type :
CPRI Optical Cable ODVA Connector in FTTA
Application :
3G 4G base station used
Feature :
Waterproof, fireproof and UV resistant
Color :
Black
Advantage :
IP67 Protection, Salt-mist proof
Fiber Core :
2,4…12
Description

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord

Description


ODVA BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

ODVA BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

With the development of distributed antenna syatems(DAS), ODVA connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.

Typical Usages


FTTA,FTTH Application
3G,4G Base Station
Horizontal and Vertical Cabling
BBU,RRU,RRH,LTE

Typical Advantage


IP67 Protection, Salt-mist proof
Fully Water-blocked
Wall Seal Design, Easy Operation, Cost-effective Installation
Light Weight, Dustproof and Waterpoof

Performance Parameters

Connector End A Compact RRH/BBU Helix Cover Connector
End B DLC (duplex LC),or SC,FC,ST,MPO,MTP......
Fiber Core 2,4…12
Mode Singlemode Multimode
Operating Wavelength(nm) 1310/1550 850/1310
Polishment UPC APC UPC
Insertion Loss(Max.dB) 0.2 0.3
Return Loss(Min.dB) 55 60 35
Mating times 500 Min
Durability(Max.dB) 0.2
Reaptability(Max.dB) 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord

ODVA - MPO 7.0mm FTTA Outdoor Optical Fiber Waterproof IP67 Patch Cord
