Indoor Fiber Optic Wire 7 Core GJFJV Multi Purpose Break Out Indoor Cable
Indoor Fiber Optic Wire 7 Core GJFJV Multi Purpose Break Out Indoor Cable
Specifications
Brand Name :
Hanxin or OEM
Model Number :
FTTH
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000KM per week
Delivery Time :
3-7 working days
Packaging Details :
Wooden shaft and woodern box
Color :
Yellow
Jacket material :
PVC/LSZH
Storage Temperature :
-20℃ to + 60℃
Application :
FTTH,INDOOR
Strengthen member :
FRP or Steel 0.4mm/0.45mm/0.5mm
Fiber count :
02~12 fiber
Package :
Carton
Description

Indoor Fiber Optic Wire 7 Core GJFJV Multi Purpose Break Out Indoor Cable

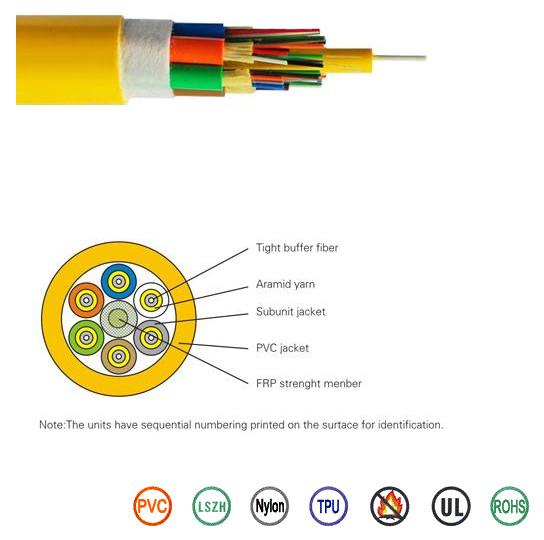

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass

yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with

PVC(LSZH)jacket.

Description

02~12 fiber, Stranded structure, FRP strength member, 1-fiber subunit (Φ900μm Tight buffer, Aramid yarn), PVC Jacket.

· Standards

Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR.

· Cable Code


BOC-02		 BOC-04 BOC-06 BOC-08 BOC-10 BOC-12
Cable Diameter (mm) 7.2±0.5 7.2±0.5 8.3±0.5 9.4±0.5 10.7±0.5 12.2±0.5
Cable Weight (kg/km) 45 45.2 62.5 85.9 109 140
TBF Diameter 900±50μm

·Mechanical Characteristics
Tensile Strength Long term 200N
Short term 660N
Crush Resistance Long term 300N/100mm
Short term 1000N/100mm
Bending Radius Dynamic 20×D ( Cable Diameter)
Static 10×D ( Cable Diameter)

·Optical Characteristics
50/125μm 62.5/125μm G.652 G.655
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.45dB/km ≤0.50dB/km
@1550nm ≤0.30dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Attenuation at temperature cycling Δα(-20℃~+85℃) @1300nm ≤0.50dB/km ≤0.50dB/km
@1550nm ≤0.20dB/km ≤0.20dB/km

·Environmental Characteristics
Transport Temperature -20℃~+60℃
Storage Temperature -20℃~+60℃
Installation Temperature -5℃~+50℃
Operating Temperature -20℃~+60℃
