Unitube Non Metallic Non Armored Cable GYFXY With Polyethylene Sheath
Unitube Non Metallic Non Armored Cable GYFXY With Polyethylene Sheath
Specifications
Brand Name :
hanxin
Model Number :
SM MM
Certification :
CE ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
400km/day
Delivery Time :
3-10working days according to the qty
Packaging Details :
yarn-beam and carton
Cable Diameter :
10.2
Bending Radius Static :
10D/20D
Standard :
Standard YD/T 769-2003.
Fiber Count :
2-12
Tensile Strength :
400/1000
Crush Resistance :
300/1000
Description

Unitube Non Metallic Non Armored Cable GYFXY With Polyethylene Sheath

Description

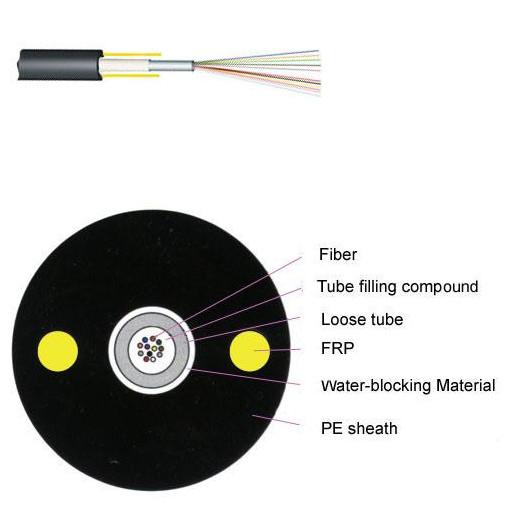

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Characteristics

· Good mechanical and temperature performance

· High strength loose tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Two parallel FRPs ensure tensile strength

· PE sheath protects cable from ultraviolet radiation

· Small diameter, light weight and friendly installation

· Long delivery length

Standards

GYFXY cable complies with Standard YD/T 769-2003.

Optical Characteristics


G.652		 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Technical Parameters

Cable Type

(Increased by 2 fibers)

 Fiber Count

Cable Diameter

mm

 Cable Weight kg/km

Tensile Strength

Long/Short Term

N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm
GYFXY -2~12 2~12 10.2 100 400/1000 300/1000

10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
