2 Core Single Mode Fiber Optic Patch Cable Duplex Cable G652D PVC / LSZH
2 Core Single Mode Fiber Optic Patch Cable Duplex Cable G652D PVC / LSZH
Specifications
Brand Name :
Hanxin or OEM
Model Number :
Indoor cable
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000KM per week
Delivery Time :
3-7 working days
Packaging Details :
Wooden shaft and carton
Fiber type :
G652D,G657A2 etc.
Color :
yellow or OEM
Fiber count :
2 core
Jacket material :
LSZH,PVC
Storage Temperature :
-20℃~+60℃
Operating Temperature :
-20℃~+60℃
Description

2 Core Single Mode Fiber Optic Patch Cable Duplex Cable G652D PVC / LSZH

Description

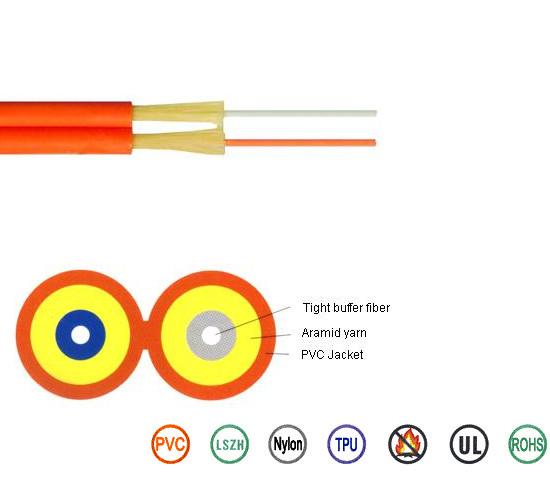

2 fiber, Figure 8 structure, Φ900μm or Φ600μm Tight buffer fiber, Aramid yarn, PVC Jacket.

·Standar

· Comply with Standard YD/T 1258.3-2003, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR and OFNP.

Cable Code

ZCC-III ZCC-II ZCC-I
Cable Diameter (mm) (6.0±0.4)×(2.8±0.2) (4.2±0.4)×(2.0±0.2) (3.4±0.4)×(1.6±0.2)
Cable Weight (kg/km) 15.6 10.5 7.3
TBF Diameter 900±50μm 900±50μm 600±50μm

·Mechanical Characteristics

Tensile Strength Long term 100N 100N
Short term 200N 200N
Crush Resistance Long term 200N/100mm 100N/100mm
Short term 1000N/100mm 500N/100mm
Bending Radius Dynamic 20×H ( Cable Axis)
Static 10×H ( Cable Axis)

· Optical Characteristics

50/125μm 62.5/125μm G.652 G.655
Attenuation(+20℃) @850nm ≤3.5dB/km ≤3.5dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.45dB/km ≤0.50dB/km
@1550nm ≤0.30dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500MHz·km ≥200MHz·km
@1300nm ≥1000MHz·km ≥600MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm
Attenuation at temperature cycling Δα(-20℃~+85℃) @1300nm ≤0.25dB/km ≤0.25dB/km
@1550nm ≤0.10dB/km ≤0.15dB/km

·Environmental Characteristics

Transport Temperature -20℃~+60℃
Storage Temperature -20℃~+60℃
Installation Temperature -5℃~+50℃
Operating Temperature -20℃~+60℃
