FRP / Steel Drop Fiber Optic Cable Optical Fiber Unit 1KM 2KM 3KM 5 KM In Roll
FRP / Steel Drop Fiber Optic Cable Optical Fiber Unit 1KM 2KM 3KM 5 KM In Roll
Specifications
Brand Name :
Hanxin or OEM
Model Number :
FTTH
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000KM per week
Delivery Time :
3-7 working days
Packaging Details :
Wooden shaft and woodern box
Color :
Black or White
Jacket material :
PE or AT
Storage Temperature :
-20℃ to + 60℃
Operating Temperature :
-20℃ to + 60℃
Application :
FTTH,OUTDOOR
Strengthen member :
FRP or Steel 0.4mm/0.45mm/0.5mm
Description

FRP / Steel Drop Fiber Optic Cable Optical Fiber Unit 1KM 2KM 3KM 5 KM In Roll

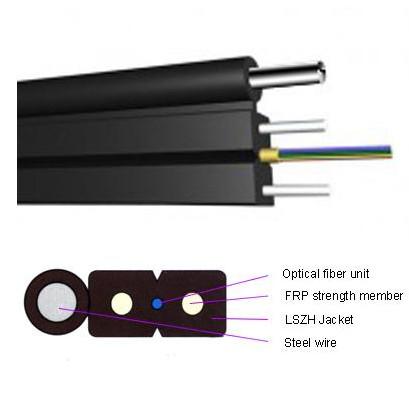

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

·Characteristics

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the
fiber;
· Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.

·Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.5 dB/km ≤3.5 dB/km
@1300nm ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

·Technical Parameters

Fiber Count Cable Diameter
mm		 Cable Weight
kg/km		 Tensile Strength
Long/Short Term
N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
1 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
2 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
3 (2.0±0.2)×(5.6±0.2) 21 60/120 300/1000 15/30
4 (2.0±0.2)×(5.6±0.2) 22 60/120 300/1000 15/30

Storage/Operating Temperature : -20℃ to + 60℃
