Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP
Specifications
Brand Name :
DAMU
Model Number :
DM-ODB-24
Certification :
CE ROSH ISO9001
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
500000/month
Delivery Time :
5-8
Packaging Details :
NORMAL PACKING
Application :
FTTH FTTB FTTX Network
Product name: :
24 port fiber distribution box
Material :
PC ABS
Ports :
24 Ports
Function :
Distribution Fiber System (FTTH)
Operating temperature :
40~+85
Description

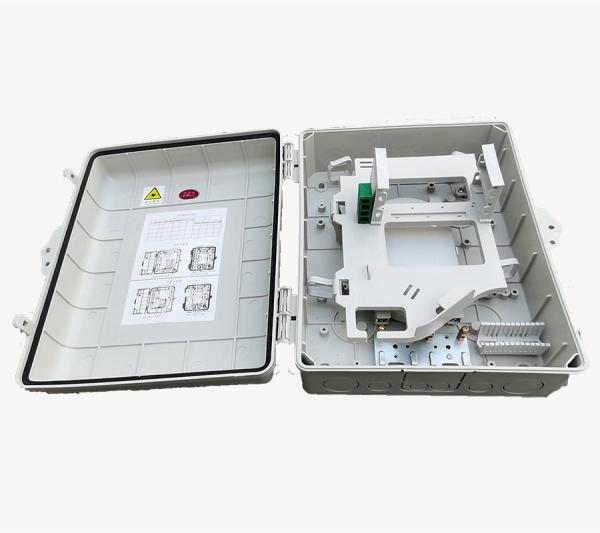

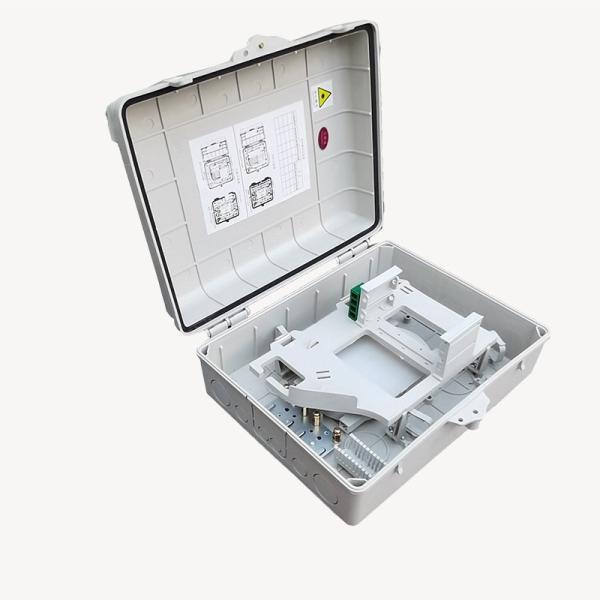

Indoor Outdoor Waterproof ABS FTTH 24 Core Fiber Optic Splitter Distribution Terminal Box ODP ODB FDB NAP

Product Description
Application
*Certification: ISO 9001
*Standard: IEC 61073-1,IEC 60793, IEC 60794, IEC 61754
Application: for home, hotel, office and buildings network wiring
Specification
*Water-proof design with IP-65 Protection level.
*Integrated with splice cassette and cable management rods.
*Manage fibers in a reasonable fiber radius condition.
*Easy to maintain and extend the capacity.
*Fiber bend radius control more than 40mm.
*Suitable for the fusion splice or mechanical splice.
*1*2 and 1*4 Splitter can be installed as an option.
*Efficient cable management.
*Temperature:-20℃~ 70℃
*OEM / ODM:Available

Destription

The fiber access termination box is able to hold up max to 6 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Feature

  • ABS material used ensures the body strong and light.
  • Water-proof design for outdoor uses.
  • Easy installations: Ready for wall mount – installation kits provided.
  • Adapter slots used – No screws and tools needed for installing adapters.
  • Ready for splitters: designed space for adding splitters.
  • Space saving! Double-layer design for easier installation and maintenances:
  • Lower layer for splitters and over length fiber storage.
  • Upper layer for splicing, cross-connecting and fiber distribution.
  • Cable fixing units provided for fixing the outdoor optical cable.
  • Protection Level: IP65.
  • Accommodates both cable glands as well as tie-wraps
  • Lock provided for extra security
Dimensions and Capability
  • Accommodates splitters and up to 16SC simplex adapters
  • Max allowance for entry cables: max diameter 16mm, up to 2 cables
  • Max allowance for exit cables: up to 16 simplex cables

Operation conditions:

  • Temperatures:-40℃ -- 60℃
  • Humidity:93% at 40℃
  • Air Pressure:62kPa – 101kPa

Package includes:

  • Terminal box, 1 unit
  • Keys for lock, 2 keys
  • Wall mount installation accessories, 1 set

Ftth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAPFtth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAPFtth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAPFtth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAPFtth Fiber Optic Splitter Terminal Box 24 Core ODP ODB FDB NAP

  • FAQ
    1.who are we?
    We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
    Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
    Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
    about 11-50 people in our office.

    2.how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    fiber optic polishing machine,fast connector,fiber optic polishing jig,uvc sterilizer box,fiber optic patch cord

    4.why should you buy from us not from other suppliers?
    12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
    leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

    5.what services can we provide?
    Accepted Delivery Terms: FOB,EXW；
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
    Language Spoken:English,Chinese
