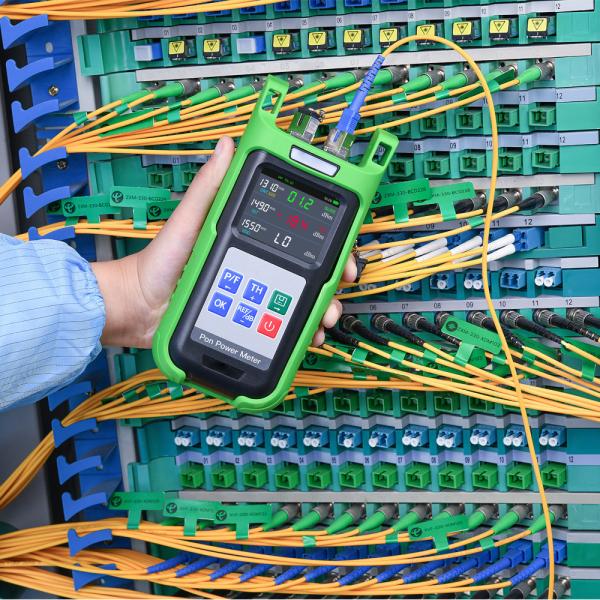

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
Specifications
Brand Name :
DAMU
Model Number :
PON METER
Place of Origin :
China
MOQ :
1
Price :
$70-90/PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS per day
Delivery Time :
3-5days
material :
ABS shell protect
Product name :
opn power meter
Application :

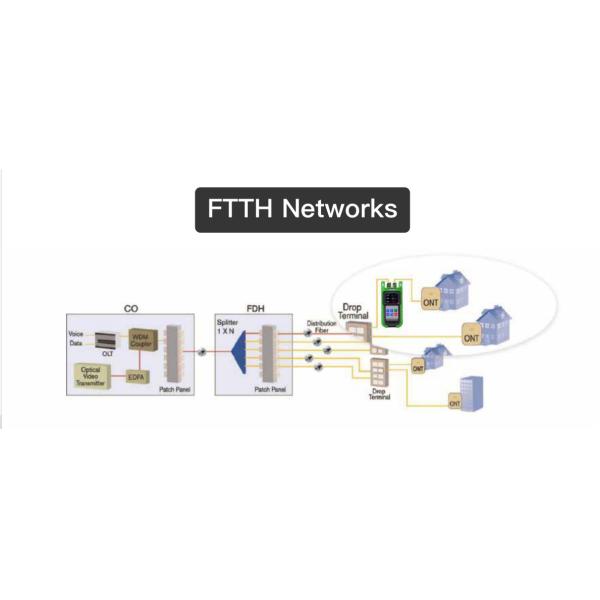

FTTH FTTB FTTX Network
Weight :
300g
Color :
green
Wavelength :
1310 1490 1550nm
Connector :
sc/APC
Description

Suitable FTTH PON OPM Network 3 wavelengths 1310 1490 1550nm compact Pon Power Meter

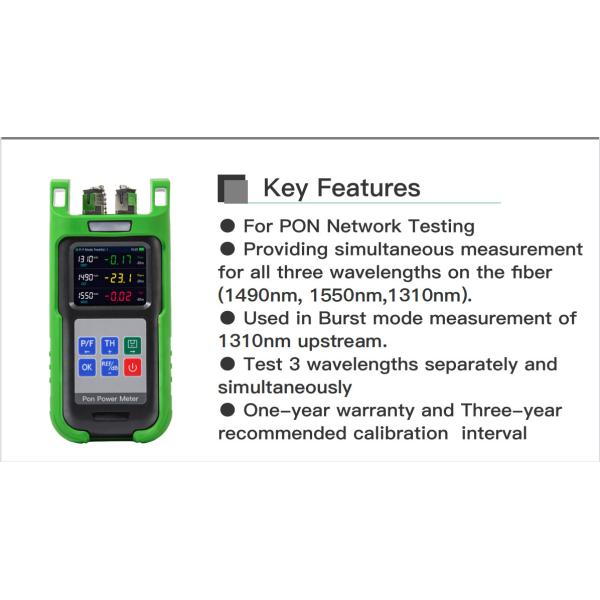

PON Optical Power Meter

Optical Pon Power Meter Fiber Test Tools
* Themeter test threshold can be set through the management software
* Automaticshutdown (can be cancelled)
* Userscan test 1490 in the PON network at the same time nm, 1550nm, 1310nm three wavelengths
* Simultaneouslymeasure and display different PON architectures, data and video signals
* Theinstrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
* Manualcalibration

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power MeterFTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power MeterFTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

Model
PON
Measuring wavelength
1310nm
1490nm
1550nm
Sensor Type
InGaAS
Linearity
±0.2dB@1550nm≥-40dBm
Isolation
With filtering function
1490nm Wavelength＞40dB
1310nm Wavelength＞40dB
1310nm Wavelength＞40dB
1550nm Wavelength＞40dB
1550nm Wavelength＞30dB
1490nm Wavelength＞30dB
Testing range
-40dBm～+16dBm
-50dBm～+16dBm
-50dBm～+23dBm
Insertion loss in penetration mode (dB)
Less than 1.5dB
Measurable optical frequency broadband
1260～1360
1480～1500
1539～1565
Inherent uncertainty
0.5dB±1nW@1550nm
Display resolution
0.01dB
Threshold setting
5 groups are set by the host computer
Calibration wavelength
1310nm/1490nm/1550nm
Data storage
900 groups
Operating temperature
-10℃～+50℃
Relative humidity
0%～95%RH
Interface type
SC/UPC(Other types can be customized)
Power supply
3 AA batteries

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power MeterFTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter

FTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power MeterFTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power MeterFTTH Fiber Optic Tools 3 Wavelengths 1310 1490 1550nm Compact PON Power Meter
