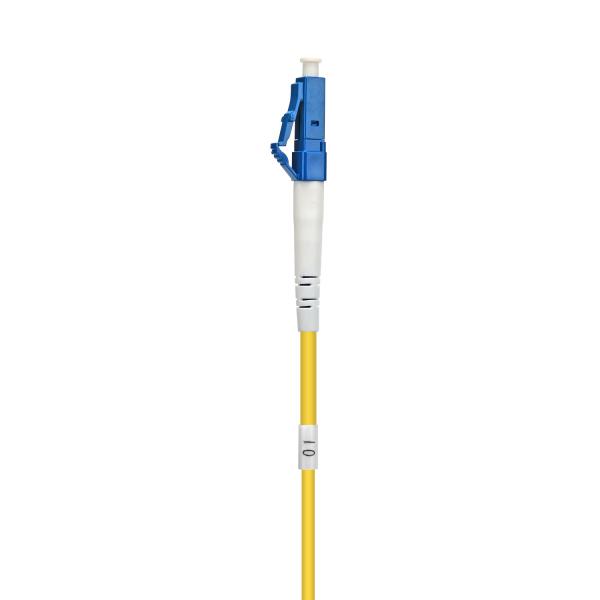

Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
Specifications
Brand Name :
DAMU
Model Number :
DM-PC-LCLC
Certification :
CE ROSH ISO9001
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
500000/month
Delivery Time :
5-8
Packaging Details :
NORMAL PACKING
Fiber type :
MM
Application :
FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Connector type :
PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST or Hybrid
Length :
1m 2m 3m or Customized
Insertion loss :
≤0.3dB
Connector :
LC,SC,SC LC FC ST MU,anything,SC/APC
Material :
PVC,LSZH,PVC/LSZH
Product name :
Fiber Optic Patch Cord
Item :
optical fiber patch cord
Quality control :
100% test before shipping
Polish :
PC/UPC/APC
Real factory :
Yes
Description
Product Description

LC UPC-LC UPC Single Mode Customized Length Simplex 4 CORE Fiber Optic Patch Cord LC-LC Fiber Jumper Cable

Quick details:

  1. Precise connector
  2. Customized length
  3. Excellent mechanical capability
  4. Insertion loss<0.2dB,
  5. Good durability and exchangeability
  6. Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard

Features:

Low insertion loss High return loss

Excellent mechanical endurance

High credibility and stability

Good in repeatability and exchangeability

Applications:

Optical access network

Data processing networks

Premise installations

Local Area Networks(LANs)

Wide Area Networks(WANs)

Specification:

Connector Type FC, SC, LC, ST, MU, MTRJ, MPO
Fiber Type SM(G.652D/G.657A) MM(OM1/OM2/OM3/OM4)
Ferrule End-face PC UPC APC PC
Insertion Loss ≤0.3dB ≤0.2dB ≤0.3dB ≤0.2bB
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Exchangeability ≤0.2dB
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C

Fiber type Min. Bandwidth Distance attenuation
62.5/125

850/1300nm

200/500 MHz/Km

 @100Mbps 2km @1Gig 220m

850/1300nm

3.0/1.0dB/km
50/125

850/1300nm

500/500 MHz/Km

 @100Mbps 2km @1Gig 500m

850/1300nm

3.0/1.0dB/km

50/125

10Gig Optimized

850/1300nm

2000/500 MHz/Km

 @100Gig Varies by VCSEL typical 300m 2850nm

850/1300nm

3.0/1.0dB/km
9/125

1310/1550nm

Approx 100 Terahertz

 Up to 100km Varies by transceiver

1310/1550nm

0.4/0.3dB/km

Ordering Information

Boot

(cable size)

 Boot Color Fiber Type Cable number Ferrule Length

0.9mm

2.0mm

3.0mm

Black

Beige

Blue

Gray

White

Yellow

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

UPC

APC

 Customized

Simplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch CableSimplex Single Mode Patch Cord , 4 Core Lc Lc Fiber Patch Cable
