Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
Specifications
Brand Name :
DAMU
Model Number :
DM-PC-MPOLC
Certification :
CE ROSH ISO9001
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
500000/month
Delivery Time :
5-8
Packaging Details :
NORMAL PACKING
Fiber type :
SM
Application :
FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Connector type :
PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST or Hybrid
Length :
1m 2m 3m or Customized
Insertion loss :
≤0.3dB
Connector :
LC,SC,SC LC FC ST MU,anything,SC/APC
Material :
PVC,LSZH,PVC/LSZH
Product name :
Fiber Optic Patch Cord
Item :
optical fiber patch cord
Quality control :
100% test before shipping
Polish :
PC/UPC/APC
Real factory :
Yes
Description
Product Details
Name MPO Fiber Optic Patch Cord Fiber Type OM3
Connector SC/LC/ST/FC / MPO Cable Type 12 Cores
Cable OD(MM) 3 Cable Jacket LZSH Or Oem
Cable Color Aqua Or Customized Ferrul End-face UPC
High Light

MPO Fiber Optic Patch Cord

,

OM3 Fiber Optic Patch Cord

,

OM3 MPO Fiber Patch Cord
Product Description

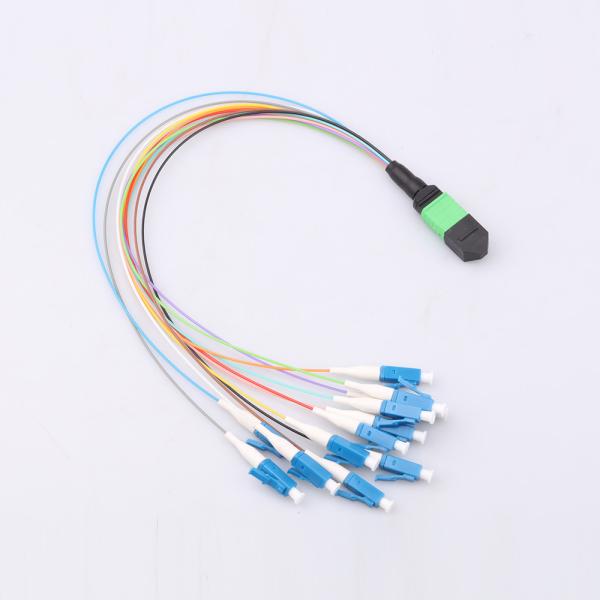

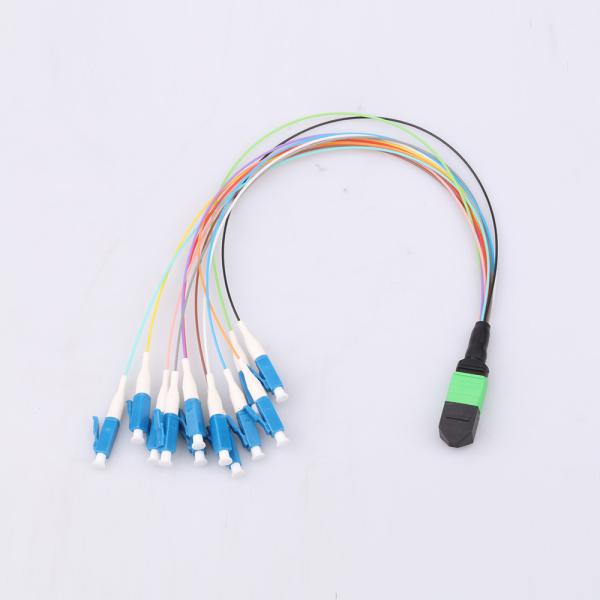

MPO fan-out cable


1. Description:


MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.

2. Features:


High reflection loss with APC
High fiber density (maximum 24 fibers for Multimode)
Single mode and Multimode (Flat/Round) available
Fiber in single connector: 4, 8, 12 24
Insert/Pull latching connector

3. Application:


Premise Installations
FTTH, CATV, LAN, MAN, WAN, Test & Measurement
Telecommunication and Data processing Networks
Video transmission, Data transmission
Active Device Termination

4. Specification:

Type/Performance SM(APC Polish) MM (UPC / Flat Polish)
Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -40°C to 80°C 40°C to 80°C
Test Wavelength 1310nm 850nm



5. Order Information:

Connector

#1

 Polishing

Connector

#2

 Polishing Cable Fiber Diameter Mode type Length Remark
1:SC P:PC 1:SC P:PC 1:simplex 1:0.9mm 6:62.5/125 1:1M A:Armoved
2:ST U:UPC 2:ST U:UPC 2:duplex 2:2.0mm 5:50/125 2:2M
3:FC A:APC 3:FC A:APC 3:4fibers 3:3.0mm 9:9/125
4:LC 4:LC 4:6fibers 1:50/125OM3
5:MTRJ 5:MTRJ 5:8fibers 2:50/125OM4
6. MU 6. MU 6:12fibers
7:SMA 7:SMA 7:24fibers
8:MPO 8:MPO 8:48fibers
9. DIN 9. DIN
10.D4 10.D4

Ribbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APCRibbon Type Mpo Fan Out Cable SM MM High Reflection Loss With APC
