OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
OM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
Specifications
Brand Name :
DAMU
Model Number :
DM-PC-MPOLC
Certification :
CE ROSH ISO9001
Place of Origin :
China
MOQ :
50
Payment Terms :
T/T
Supply Ability :
500000/month
Delivery Time :
5-8
Packaging Details :
NORMAL PACKING
Fiber type :
MM
Application :
FTTH FTTB FTTX Network,FTTH/Test equipments/TV/LAN/Telecommunication equipments
Connector type :
PC/UPC/APC,SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO,ST SC LC FC,SC/Apc & SC/Upc,SC-SC LC-LC FC-FC ST-ST or Hybrid
Length :
1m 2m 3m or Customized
Insertion loss :
≤0.3dB
Connector :
LC,SC,SC LC FC ST MU,anything,SC/APC
Material :
PVC,LSZH,PVC/LSZH
Product name :
Fiber Optic Patch Cord
Item :
optical fiber patch cord
Quality control :
100% test before shipping
Polish :
PC/UPC/APC
Real factory :
Yes
Description

High Stability OM4 MTP Fiber Optical Patch Cord For 40G Networks

Product Details
Connector Type MPO/MTP Ferrule End-face UPC, APC
Fiber Type OM4 Cable Type 8core, 12core, 24core
Cable OD 3.0mm Cable Jacket PVC LSZH OFNR OFNP
Cable Length 1M, 2M, 3M Or Customized Cable Color Orange, Yellow, Aqua, Purple, Violet Or Customized
High Light

optical patch cord

,

optical fiber connector
Product Description

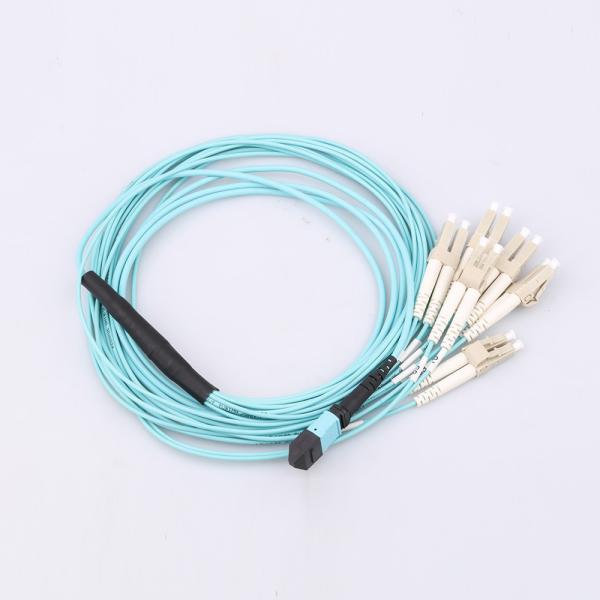

High Stability OM4 MTP Fiber Optic Patch Cord for 40G Networks


Description:

MPO/MTP fiber optic patch cords are with MPO/MTP fiber optic connectors.
They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc.

Features:


Good exchange ability

Good durability

100% optic test
Available in fiber bunch, ribbon fan-out, pigtail available
Meets ISO9001, ROHS and Bell core GR 326-core standards
Customized specifications welcomed

Application:

FTTH, LAN, PON

Optical CATV

Local ring net

Optical fiber communication system

Optical fiber test equipment

Optical fiber sensor


Specification:

Fiber Connector

Connector A
Connector Type 8, 12 or 24 -Fiber MPO /MTP
Ferrule of end-face UPC, APC
Housing Color MM (Beige/Aqua), SM (Yellow/Green)
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(500 Matings) < 0.2dB
Connector B
Connector Type LC/SC
Ferrule of end-face UPC, APC
Housing Color Blue, Beige, Aqua
Insertion Loss, Typical ≤ 0.10 dB
Insertion loss, max. ≤ 0.35 dB
Durability(1000 Matings) < 0.2dB


Fiber Cable

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24 cores
Outer diameter 12cores: 4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength 500N
Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C


Order Information:

MPO/UPC-MPO/UPC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
① Connector type: FC, SC, LC, ST, MTRJ, MU, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP

OM4 MTP Fiber Optic Patch Cord High Stability For 40G NetworksOM4 MTP Fiber Optic Patch Cord High Stability For 40G Networks
