Main function and scope of use.This machine be used for test the FC .SC.LC.MU.MPO ect patch cords,tensile resistance, torsion, bend dates under the standard load.

Size

1 Technical parameters

voltage:AC220V to 24V

electric current:10A

Power:50W

Machine size:170*80*50cm

weight:40kg

Feature

This machine is a multi-function testing machine, which can be used to test various types of optical fiber connectors for tensile, torsion, bending and tension. The test process is completed with the program, simple operation, accurate test, save time, meet domestic and international standards, is the first in China!

2 Construction and principle

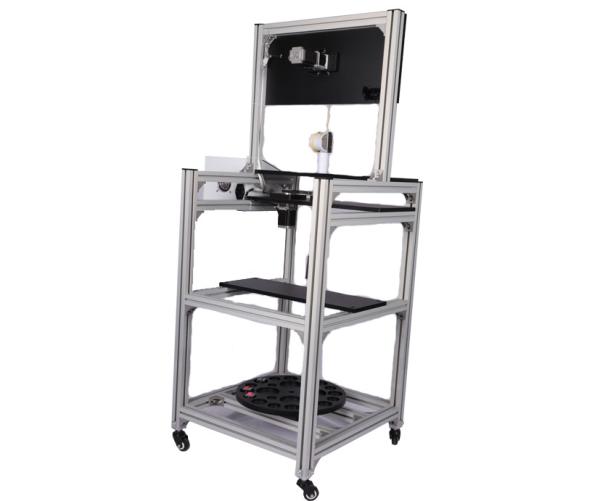

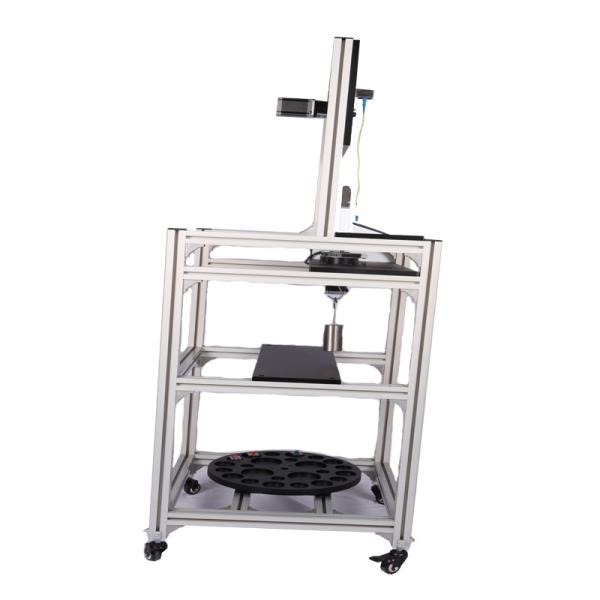

2.1 Construction:Device consists of frame, stepper motor (on), the swing arm, adapter, stepper motor (below), synchronous round 1, synchronous round 2, cable rolling tray, pull rod, weights, weights turntable, control box, touch screen, PLC, drives, 24 v switching power supply, sensors, etc.

2.2 Principle:Click on some model on the screen,PLC give commands and instructions,The drive motor drives the motor to perform all kinds of required actions, the action is completed, automatic alarm and stop operation.

3, Application flow sheet

3.1flow sheet : Connect the power supply, from screen choose the project to test, click on the project to the next screen, then click on the connector type, and then at the jacket photogenic corresponding types of connectors, adapter plug in bulk, and around the circle line of the cable tray and fixed good, should hang up the relative weight of, gently press the start key can automatically finish the product testing process, and then into the next process.

4,Maintenance and repair

4.1 Maintenance: Pay attention to the protection of the touch screen, can not use hard object to knock, in case of rupture, after work to turn off the power switch. Keep the machine and weight clean.

4.2 Repair:If have some problem of the machine,pls don't remove and repair by yourself, you must contact the manufacturer, the manufacturer to send someone to repair or authorized by the manufacturer to agree to your maintenance, warranty one year under normal use.
