12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication
Specifications
Brand Name :
DAMU
Model Number :
DM-GYXTW-6
Certification :
ISO9001
Place of Origin :
China
MOQ :
3km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
5-8
Packaging Details :
1KM-5KM per wooden drum, Weight: 50KG/KM,Drum Size:68*68*60cm
Number of conductors :
2 Fibers
Fiber type :
Singlemode 9/125
Jacket material :
PE(Black)
Description
Product Details
Model NO 6core GYXTW Fiber Optic Cable Core Multicore
Strength Member 2 Steel Wire Armoured Steel Tape
Structure Central Loose Tube Brand DAMU Or OEM
High Light

12 Core Armoured Fiber Optic Cable

,

6 core armoured fiber optic cable

,

G652D multicore fiber optic cable
Product Description

12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication

Armored 6 12 Core Fiber Optic Cable GYXTW G652D Outdoor Use HDPE Jacket Fiber Cable Communication Cable

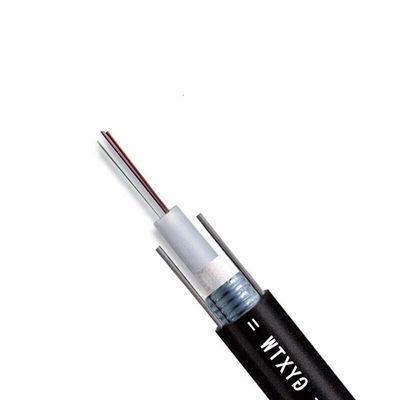

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The cable is completed with a polyethylene (PE) sheath.

Product features
1. Small outer diameter, light weight and convenient construction
2. Stable fiber excess length control
3. After the cable is formed, the additional attenuation of the fiber is almost zero, and the dispersion value does not change
4. Excellent environmental performance

Structural feature
1. Central loose tube protects once coated optical fiber
2. The optical fiber is concentrated in the center of the cable, and the reinforcements are distributed on both sides of the cable
sheath
3. A water blocking layer is provided between the steel belt and the cable core
4. Double-sided plastic-coated corrugated steel tape-polyethylene bonded outer sheath
5. Double steel wire parallel reinforcement

Product Name
GYXTW fiber optic cable
Fiber Count
2 Fibers
Construction
Central Loose Tube
Fiber Type
Singlemode 9/125
Outer Jacket Material
PE(Black)
Strength MemberMaterial
Steel Wire
Weight
50KG/KM
Armor Layer
PSP Steel
Application
Aerial and Duct
Steel Diameter
0.8mm *2
Jacket Diameter
8.0mm-10.0mm
Jacket Material
PE
Test Wavelength
1310/1550nm
Operation temperature
-40℃~ 85℃
Details

12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication

12 Core Armoured Fiber Optic Cable GYXTW G652D For Communication

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
