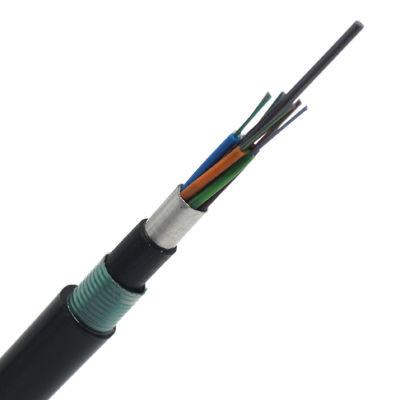

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket
Specifications
Brand Name :
DAMU
Model Number :
DM-GYTA53-24
Certification :
ISO9001
Place of Origin :
China
MOQ :
3km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
5-8
Packaging Details :
1KM-5KM/Wooden Drum, Weight: 120KG/KM, Drum Size: 78*78*68cm
Number of conductors :
48core
Fiber type :
G652D
Jacket material :
Double PE Jacket
Description
Product Details
Name GYTA53 Fiber Cable Fibers 48core
Fiber Type G652D Samples Free
Armour Steel Tape+Al Tape Jacket Double PE Jacket
Cable Color Black Warranty 3 Year
High Light

GYTY53 Outdoor Fiber Optic Cable

,

GYTA53 Outdoor Fiber Optic Cable

,

GYTA53 singlemode fiber cable
Product Description

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

Outdoor Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optic Cable 24 48 96core

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Features
1. Loose tube gel-filled construction for superiorfiber protection.
2. Double jacket single armored(GYTY53) and Double jacket double armored
3. (GYTA53) for rodent pr.otection and direct burial.
4. UV and moisture-resistant design
5. Waterproof
6. Rat bite

Applications
Direct buried, Duct, Underground conduits.
Backbone.

No.

Items

Unit

Specification

G.652D

1

Cladding Diameter

μm

125±0.7

2

Core-cladding concentricity

μm

≤0.5

3

Cladding non-circularity

%

≤0.7

4

Coating Diameter

μm

245±5

5

Cladding -coating concentricity

μm

<12.0

6

Mode field Diameter

1310nm

μm

9.2±0.4

1550nm

μm

10.4±0.5

7

Fiber Cutoff Wavelength

nm

λcc≤1260

8

Attenuation (max.)

1310nm

dB/km

≤0.4

1550nm

≤0.3

Product Details

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE JacketGYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE JacketGYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE JacketGYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
