GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof
GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof
GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof
GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof
Specifications
Brand Name :
DAMU
Model Number :
DM-GYXTC8S-24-ss
Certification :
ISO9001
Place of Origin :
China
MOQ :
3km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
5-8
Packaging Details :
2KM per wooden drums, Weight:125KG, Drum Size:75*75*60CM
Number of conductors :
24core
Name :
GYXTC8S Fiber Optic Cable
Application :
Oveahead Installation
Description
Product Details
Model Name GYXTC8S Fiber Optic Cable Fiber Count 24core
Certificate CE, FCC,ROHS Cable Outer Diameter 10.0±0.2mm
Cable Weight 150KG Application Oveahead Installation
High Light

GYTC8S Outdoor Fiber Optic Cable

,

GYTC8S fiber optic cable 24 core

,

G657A1 self supporting fiber optic cable
Product Description

GYTC8S Outdoor Fiber Optic Cable Waterproof Aerial Self Supporting Central Loose

GYTC8S Figure 8 Outdoor Fiber Optic Cable Waterproof Aerial Self-Supporting Central Loose

GYTC8S is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. It's suitable for installation in aerial, used for long distance and LAN communication systems.

Characteristics

High tensile strength of stranded wires meet the requirement of self-supporting and reduce installation cost

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

The following measures are taken to ensure the cable watertight:

1. Steel wire used as the central strength member

2. Loose tube filling compound

3. 100% cable core filling

4. APL moisture barrier

Application

Aerial self-supporting,Local network,Local network,Long distance network communication.

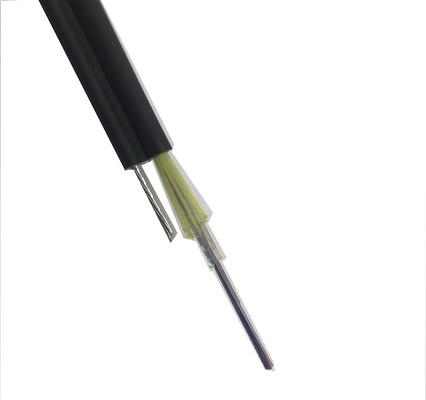

Structure
Figure 8 non armoured fiber cable consists of :
1. Stranded loose tube
2. Steel wire strength member
3. Core filler compound
4. Fillers
5. Phosphating or Galvanized steel wire
6. PE sheath


Standards and Certificate
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001

Fiber count 12core
Fiber Type: G652D/G657A1/G657A2
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter 11.4mm~13.10mm
Sheath PE
Strand Steel wire 1*1.0mm
Sample Status In stock

Product Details

GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof

GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof

GYTC8S Self Supporting Aerial Fiber Cable 24 core WaterproofGYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof

GYTC8S Self Supporting Aerial Fiber Cable 24 core Waterproof
