GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable
GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable
GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable
GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable
Specifications
Brand Name :
DAMU
Model Number :
DM-GYXTC8S-6
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
5km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
10-15Days
Packaging Details :
2KM per wooden drums, Weight:130KG, Drum Size:75*75*60CM
Number Of Fiber :
6cores
Fiber Type :
Singlemode
Outer Jacket Materail :
HDPE
Description
Product Details
Product Name GYXTC8S Fiber Optic Cable Fiber Count 6cores
Fiber Type Singlemode Overall Diameter 7*13.6mm
Outer Jacket HDPE Steel Wire Strand Wire 7x0.8mm
Length 1-5km Per Wooden Drum Cable Color Black
High Light

GYXTC8S Self Supporting Fiber Optic Cable

,

Aixton Self Supporting Fiber Optic Cable

,

Mini GYXTC8S Overhead Fiber Optic Cable
Product Description

mini GYTC8S Overhead Self Supporting Optical Cable Single mode GYXTC8S 4 6 8 12 core

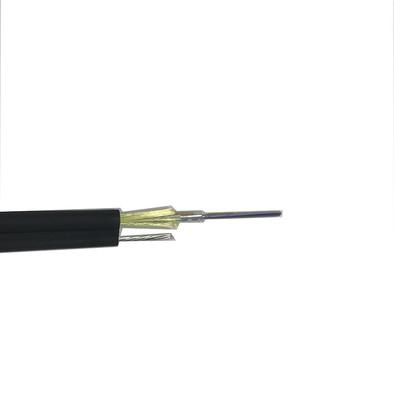

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.

Specification:

Item Name:Fiber optical cable GYXTC8S.

Optical Mode:Singlemode/Multimode.

Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.

Total Fiber Count:2-12cores.

Bend Radius(Static/Dynamic):10D/20D.

Working Life:More than 25 years.

Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Construction

  1. Colored fiber

Coated outside diameter:125.0±0.1um

Optical diber diameter:242±7um

UV color fiber:standard chromatogram

Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

  1. Tube filling compound(Gel)
  2. PBT loose tube 4. Aramid yarn 5. Black PE out jacket outside diameter:9.5*18.3mm

Standards and Certificate:

Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1

Certificate:CE ROHS ISO9001

Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility

Fiber count 6 core
Fiber Type: G652D/G657A1/G657A2
Crush Resistance Long term: 300 (N/100MM)
Crush Resistance Short term: 1000(N/100MM)
Overall Diameter 9.5*18.3mm
Sheath PE
Strand Steel wire 7*0.8mm
Sample Status In stock

Product Details

GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber CableGYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber CableGYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable

GYTC8S Fiber Optic Cables , 6 Cores Self Supporting Aerial Fiber Cable

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
