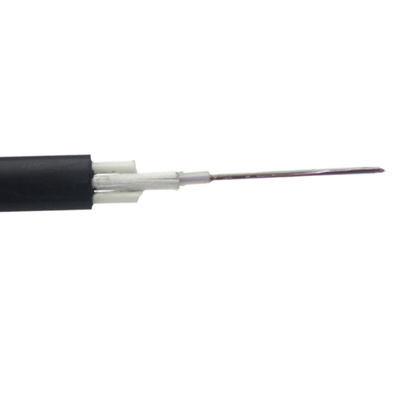

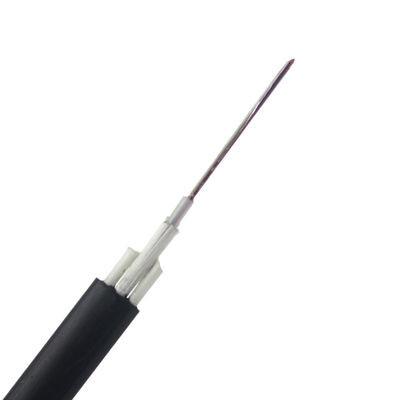

GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core
Specifications
Brand Name :
DAMU
Model Number :
DM-GYFXY-12
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
3km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
10-15Days
Packaging Details :
3000M/Wood Roll，Size of Wood Roll：75*75*66cm, Weight:150KG
Number Of Fiber :
12
Fiber Type :
Single Mode G652d
Outer Jacket Materail :
PE
Application :
Overhead
Package :
3000M/Wood Roll
Description
Product Details
Product Name GYFXY Fiber Optic Cable Fiber Type G652d
Construction Flat Central Loose Tube Number Of Fiber 12
Cable Diameter 9.5x4.6mm Outer Jacket Materail PE
Package 3000M/Wood Roll Application Overhead
High Light

GYFXTY FL Flat Drop Fiber Cable

,

Gyfxy Flat Drop Fiber Cable

,

Gyfxy Ftth Drop Cable
Product Description

Self Supporting GYFXTY FL Flat Drop Fiber Cable 24 Core Gyfxy Ftth Drop Cable

GYFXTY-FL Flat Structure Dielectric FRP Strength Member 2-24 Core Fiber Optic Cable Gyfxy

This kind of dielectric cables offer the ease of installation of standard flat cables in an easy-access, single-tube design. The dielectric version eliminates any bonding and grounding requirements. The cables can offer exceptional crush resistance. Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications. It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.

Features

  • Low dispersion and attenuation
  • PE sheath protects cable from ultraviolet radiation
  • Small diameter, light weight, and friendly installation
  • Excellent mechanical and temperature resistant performance
  • Special tube filling compound ensures a critical protection for fiber
  • High strength loose tube itself has good hydrolysis resistant performance
  • Two parallel non-metal strength has an excellent anti-electromagnet ability
  • Aerial application
  • Trunk power transmission system
  • Access network and local network
  • Electromagnetic interfering places
  • Adopted to outdoor distribution, lightning protection
  • Long-distance comunication and bureau communication

Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
4 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
6 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
8 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
12 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60
24 9.5x4.6 45.00 1200 500 1000 300 20D 10D -40+60

Fiber standard control

Fiber Type		 Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted

GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core

GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core

GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core

GYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 CoreGYFXTY Fiber Optic Cables , Overhead Ftth Flat Drop Cable 24 Core

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
