Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
Specifications
Brand Name :
DAMU
Model Number :
DM-GYFXTY-6
Certification :
CE ROSH ISO9001
Place of Origin :
China
MOQ :
3KM
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
10-15DAYS
Packaging Details :
3000M/Wood Roll，Size of Wood Roll：103*103*66cm, Weight:240KG
Product Name :
GYFXTY Fiber Opticl Cable
Fiber Type :
Single Mode
Cable Structure :
Uni-Loose Tube Non Metallic
Number Of Fiber :
6
Cable Diameter :
7.0±0.5mm
Outer Jacket Materail :
PE
Package :
3000M/Wood Roll
Application :
Overhead
Description
Product Details
Product Name GYFXTY Fiber Opticl Cable Fiber Type Single Mode
Cable Structure Uni-Loose Tube Non Metallic Number Of Fiber 6
Cable Diameter 7.0±0.5mm Outer Jacket Materail PE
Package 3000M/Wood Roll Application Overhead
High Light

GYFXTY Optical Fiber Cable

,

GYFXTY Outdoor Optical Cable

,

GYFXTY telecommunication cable
Product Description

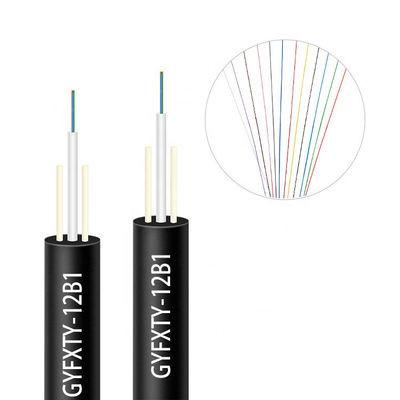

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.

Features

  • Full cross-section water-blocking structure with vertical cover ensure good water blocking and moisture resistance
  • Loose tube is filled with special ointment for a key fiber protection
  • The material of strengt member is copper wire.
  • Product life of 30 years

Applications

  • Applications: Suitable for long-distance communication and indoor communication
  • Way of laying: overhead, pipeline
  • Operating temperature: -40 ~ + 70 °C
  • Bend radius: static 10x cable diameter; Dynamic 20x cable diameter

Optical Characteristics

Technical parameters:
cable count out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum allowable Crush load(N/100mm) Min bending radius(MM) Suitable temperature
(MM) (KG) short term long term short term long term short term long term (℃)
2 7.2 45.00 1200 500 1000 300 20D 10D -40+60
4 7.2 45.00 1200 500 1000 300 20D 10D -40+60
6 7.2 45.00 1200 500 1000 300 20D 10D -40+60
8 7.2 45.00 1200 500 1000 300 20D 10D -40+60
12 7.2 45.00 1200 500 1000 300 20D 10D -40+60
24 7.2 45.00 1200 500 1000 300 20D 10D -40+60

Fiber standard control

Fiber Type		 Multi-mode G.651 A1a:50/125 Gradient-type refractive index
A1b:62.5/125
Single-mode G.652(A,B,C,D) B1.1routines
G.653 B2 Zero dispersion-shifted
G.654 B1.2 Cutoff wavelength shift
G.655 B4 Non-zero dispersion-shifted

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single ModeTelecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
