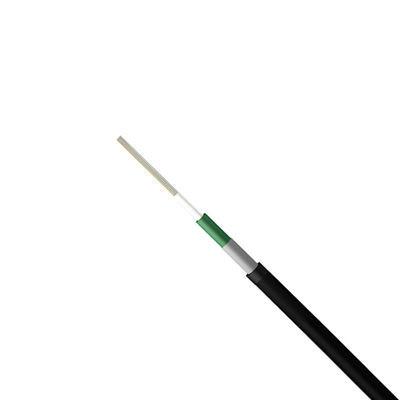

G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable
Specifications
Brand Name :
DAMU
Model Number :
DM-GCYFXTY-24
Certification :
ISO9001,CE,FCC,ROHS
Place of Origin :
CHINA
MOQ :
5km
Payment Terms :
T/T
Supply Ability :
5000km/month
Delivery Time :
10-15Days
Packaging Details :
1KM-5KM/Wooden Drum, Weight: 120KG/KM, Drum Size: 78*78*68cm
Number Of Fiber :
24 core
Fiber Type :
G652D
Description
Product Details
Product Name GCYFXTY 24 Core Fiber Cable Core Numbers 24core
Fiber Type G652D Strength Member Aramid Yarm
Jacket Color Black Or Customized Package Wooden Drum
High Light

GCYFXTY Fiber Optic Cable

,

GCYFXTY armoured fibre optic cable

,

G652D 24 core optical cable
Product Description

Outdoor Unitube Non Metallic Air Blowing Micro Fiber Optic Cable GCYFXTY Duct

The fibres are positioned in a loose tube made of PBT. A fibre reinforce plastic locates in the center of core as a non-metallic strength member.The tubes (and the fillers) are stranded around the strength member into a compact and circular core. The cable is completed with a PE sheath.

Feature
GCYFXY The fibres are positioned in a loose tube made of PBT.The tube is filled with a water-resistant filling
compound and covered with a layer of aramid yarn as strength member.The cable is completed with an outer sheath.
1. Using centre tube design less than 24F to get more compact structure.
2. Small outer dismater,light weight,low friction sheath material
3. High speed,long distance air-blowing,efficient installation
4. Optional LSZH outer sheathing,application for access to indoor 7:Optional TFO 200um optical fiber to get smaller outer diamter.

Applications
1. Access to network;
2. FTTH;
3. Adopted to backbone network.

Technical Characteristics

Type

O.D.

(mm)

Weight

(Kg/km)

Tensile strength

Long/short term

(N)

Crush

Long/short term

(N/100mm)
GCYFXTY-2B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -4B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY -6B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 8B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 12B1.3 2.3 4 0.15G/0.5G 150/450
GCYFXTY- 24B1.3 2.7 6.5 0.15G/0.5G 150/450

Structure

G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable

G652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber CableG652D 24 core Fiber Optic Cables , Unitube Non Metallic Armored Fiber Cable

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
