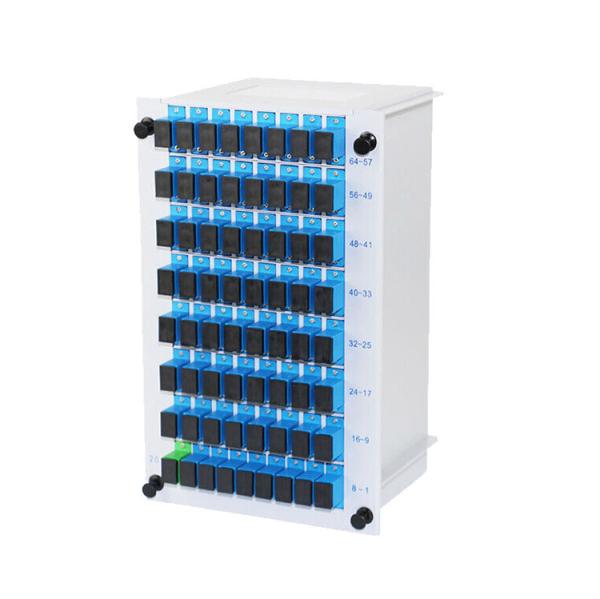

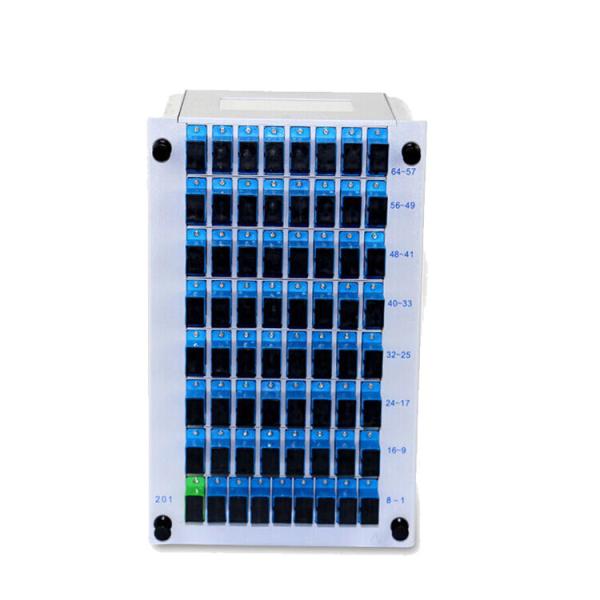

SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
Specifications
Brand Name :
DAMU
Model Number :
LGX SCAPC 1X64
Certification :
ROSH CE
Place of Origin :
CHINA
MOQ :
2pcs
Supply Ability :
20000pcs/day
Packaging Details :
blister packing,outside carton
fiber :
G675A OR G625D
ARRANGE :
8 layer x 8 verticle type
Wavelength :
1260-1650nm
cable dia :
0.9/2.0/3.0mm
CAPACITY :
64CORE
CONNECTOR :
SCUPC
Description

1x64 SCUPC FTTH PLC Splitter LGX Box Cassette Inserting box 1*64 VERTICLE 8 LAYER

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the
characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

Specification
Performance Specification: 1xN PLC Splitter
Type
1x2
1x4
1x8
1x16
1x32
1x64
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or Customer Specify
Insertion Loss(P/S Grade)
3.8/4.0
7.2/7.4
10.3/10.7
13.5/13.7
16.5/16.9
20.5/21.0
Loss Uniformity(dB)
≤0.4
≤0.6
≤0.8
≤1.0
≤1.5
≤2.0
PDL(dB)
≤0.1
≤0.1
≤0.1
≤0.2
≤0.25
≤0.3
Return Loss(dB)
≥55
≥55
≥55
≥55
≥55
≥55
Directivity(dB)
≥55
≥55
≥55
≥55
≥55
≥55
Wavelength Dependent Loss(dB)
≤0.3
≤0.3
≤0.3
≤0.3
≤0.5
≤0.5
Fiber Lenght(m)
1m or Specify
Temperature Stability(-5℃~70℃)(dB)
≤0.5
Operating Temperature(℃)
-5~70
Maximum Power Handing(mW)
500
Performance Specification: 2xN PLC Splitter
Type
2x2
2x4
2x8
2x16
2x32
2x64
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or Customer Specify
Insertion Loss(P/S Grade)
3.9/4.2
7.3/7.6
10.5/11.0
14.4/14.6
17.4/17.9
21.0/21.5
Loss Uniformity(dB)
≤0.6
≤1.0
≤1.2
≤1.5
≤1.8
≤2.2
PDL(dB)
≤0.2
≤0.2
≤0.2
≤0.3
≤0.3
≤0.3
Return Loss(dB)
≥55
≥55
≥55
≥55
≥55
≥55
Directivity(dB)
≥55
≥55
≥55
≥55
≥55
≥55
Wavelength Dependent Loss(dB)
≤0.3
≤0.4
≤0.5
≤0.5
≤0.5
≤0.5
Fiber Lenght(m)
1m or Specify
Temperature Stability(-5℃~70℃)(dB)
≤0.5
Operating Temperature(℃)
-5~70
Maximum Power Handing(mW)
500

Features:
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package

Application:

1.FTTx Systems
2.Digital, hybrid and AM-Video systems
3.LAN,WAN and Metro Networks
4.CATV systems
5.Other applictaions in fiber optic systems
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER
