Indoor Dia3mm Armored Fiber Jumper , FTTP 5m FC Fiber Optic Cable
Indoor Dia3mm Armored Fiber Jumper , FTTP 5m FC Fiber Optic Cable
Indoor Dia3mm Armored Fiber Jumper , FTTP 5m FC Fiber Optic Cable
Indoor Dia3mm Armored Fiber Jumper , FTTP 5m FC Fiber Optic Cable
Specifications
Brand Name :
Sea dragon
Model Number :
SC/PC
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Hebei china
MOQ :
2000 meters
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A, , Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Place of Origin: :
Hebei, China
Brand: :
Yogel
Model: :
SC/PC fiber jumper
Type: :
FTTx solution
Number of fibers: :
1.
Adopt: :
Fiber to the home
Application: :
Cable TV / FTTP / Net EPON
Fiber length: :
3m, 5m, 10m, others can be requested
Fiber Type: :
Corning Single Mode SMF-28
Product name: :
0m1 optical fiber jumper
Ferrule material: :
ceramic
Fiber color: :
white or blue
Insertion loss: :
≤0.25dB
Fiber size: :
3.0 mm
Return loss: :
> 60dB
Working temperature: :
-25? + 70'C (standard)
Description

Indoor Armored Fiber Optic Jumper With SC FC LC Connector

1. Product description:

Armored jumpers will enable you to use compression- and rat-proof sheaths to protect critical and necessary fiber optic networks. This cable is the perfect installation solution that requires additional protection. The sheath contains steel armor and aramid yarn strength components, which keep the cable extremely flexible, while being resistant to compression and rodents.

2. Features:

a. Superior qualified standard PC, APC, UPC, SPC polishing;
b. 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);
c. 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);
d. φ0.9mm, φ2.0mm, φ3.0mm cable optional;

Technical Parameters

Place of Origin: Hebei, China Brand: Yogel
Model: SC/PC fiber jumper Type: FTTx solution
Number of fibers:

1.

 Adopt: Fiber to the home
Application: Cable TV / FTTP / Net EPON Fiber length: 3m, 5m, 10m, others can be requested
Fiber Type: Corning Single Mode SMF-28 Product name: 0m1 optical fiber jumper
Ferrule material: ceramic Fiber color: white or blue
Insertion loss: ≤0.25dB Fiber size: 3.0 mm
Return loss: > 60dB Working temperature: -25? + 70'C (standard)

Pictures:

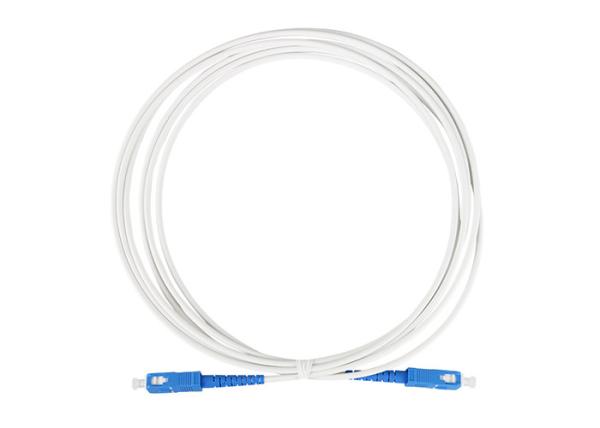

Indoor Dia3mm Armored Fiber Jumper , FTTP 5m FC Fiber Optic Cable

FAQ:

Q1: Can I have some samples for testing quality?

A1: Yes, you can buy some samples of any our products for testing quality and market.

Q2: What is delivery time if we place an order?

A2: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place offical order.

Q3: Do you accept OEM/ODM?

A3: We support OEM/ODM service: Pls don’t hesitate to tell us your ideas.
