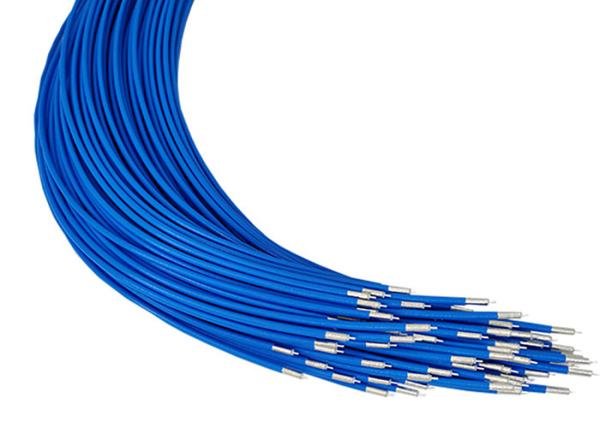

One Core 0.1KG/M RF Jumper Cable / High Temperature Resistant RG402 Coaxial Cable
One Core 0.1KG/M RF Jumper Cable / High Temperature Resistant RG402 Coaxial Cable
One Core 0.1KG/M RF Jumper Cable / High Temperature Resistant RG402 Coaxial Cable
One Core 0.1KG/M RF Jumper Cable / High Temperature Resistant RG402 Coaxial Cable
Specifications
Brand Name :
Sea Dragon
Model Number :
LC connector
Certification :
ISO9001 quality management system certification
Place of Origin :
hebei china
MOQ :
>1000
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000 Piece/Pieces per Day Fiber optic adapter
Delivery Time :
7 days
Place of Origin: :
Hebei, China
Brand: :
Tianju
Model: :
RG402
Number of conductors: :
one core
Net weight: :
0.1KG/m
Core material: :
silver-plated copper wire
Maximum outer diameter of the wire: :
4.3±0.1 (mm)
Sheath material: :
FEP
Application: :
RF antenna, base station antenna
Color: :
blue, white, red
Electric capacity (pF/m): :
98
AC voltage (kVrms): :
3 (1 minute)
Shielding effect (dB): :
> 100 (0-1G)
Impedance (ohm): :
50±2
Description
RG141 RF Cable High Temperature Resistant RG402 Coaxial Cable

Description:

1 Central conductor: The central conductor used in the cable is silver-plated copper. The silver-plated surface can ensure good long-term high-frequency transmission performance and high temperature resistance.
2: The cable uses polytetrafluoroethylene (PTFE) as the insulator. Compared with polyethylene, it is an insulating material with higher high frequency performance, good flexibility and high temperature resistance.

Product performance:

place of origin:

 Hebei, China

Brand:

 Tianju

Model:

 RG402

Number of conductors:

 A core

net weight:

 0.1KG/m

Core material:

 Silver-plated copper wire

Maximum outer diameter of the wire:

 4.3±0.1(mm)

Sheath material:

 FEP

Application:

 RF antenna, base station antenna

colour:

 Blue, white, red

Capacity (pF/m):

 98

AC voltage (kVrms):

 3(1 minute)
Shielding effect (dB): > 100(0-1G)
Impedance (ohm): 50±2

Pictures:

One Core 0.1KG/M RF Jumper Cable / High Temperature Resistant RG402 Coaxial Cable
3. External conductor: The external conductor of the cable is made of high-density braided tinned copper wire, which is immersed in tin after weaving. In addition to the characteristics of a copper tube, the external conductor is also fully conductive. Its flexibility and forming characteristics are more suitable for installation in In cabinets and narrow spaces.
4: Sheath: Choose the cable sheath according to your needs. When the environmental conditions are relatively harsh, it is recommended to choose a FEP jacket with a high temperature resistance of 200°C. The surface is smooth and wear-resistant. It is suitable for passing through narrow spaces and has salt spray resistance Such excellent characteristics. When the requirements are relatively low, such as when used on a base station antenna, PE sheath can be used.
