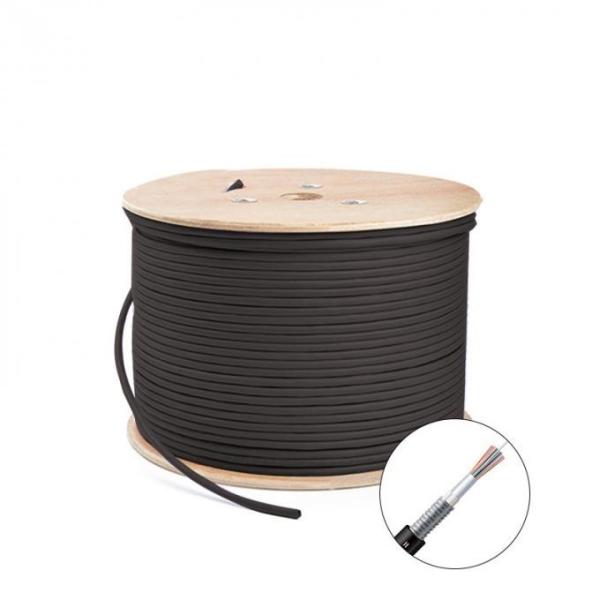

14.5mm 144 Core GYTS Fiber Optic Cord FRP Strength Member

Specifications

Strength member :

FRP strength member

Fiber Type :

G652D SM fiber

Fiber Counts :

24 / 36 / 42 / 48 / 60 / 72 / 96 /144

Fiber Options :

OS1 / OS2 / OM1 / OM2 / OM3 / OM4

Material Of Jacket :

Cable Diameter :

14.5±0.5 Mm For 144core

Application :

FTTH / Indoor / Breakout Patch Cord

Place of Origin :

china shenzhen

Brand Name :

Certification :

ISO, SGS, ROHS

MOQ :

10 pcs

Price :

Negotiation

Delivery Time :

3-7days

Payment Terms :

XTransfer T/T, Western Union, PayPal

Supply Ability :

5000 pcs/Month

Description

Steel Tape Layer Loose Tube GYTS Optical Fiber Cables

Steel Tape layer Loose Tube Outdoor Cable GYTS Fiber optic Cable Waterproof PE jacket

Description:

Steel Tape layer Loose Tube Outdoor Cable GYTS, 2~144 fibers central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer steel tape, PE outer sheath. G652D SM fiber, detailed specification on your request.

Parameter:

Fiber count	Cable dia.(mm)	Cable net weight(Kg/km)	Min. bending radius(mm)		Min. tensile strength(N)		Min. crush pressure(N/100mm)
			Static state	Dynamic state	Short term	Long term	Short term	Long
			Static state	Dynamic state	Short term	Long term	Short term	term
0-30	11	123	110	220	1500	600	1000	300
32-36	11.6	144	120	240	1500	600	1000	300
38-60	12.3	155	130	260	1500	600	1000	300
62-72	13.1	190	140	280	1500	600	1000	300
74-84	13.9	208	140	280	1700	600	1000	300
86-96	14.7	228	150	300	1800	600	1000	300
98-108	15.5	247	160	320	2000	600	1000	300
110-120	16.3	268	170	340	2200	600	1000	300
122-132	17.1	290	Product tags 25mm 3 core swa cable , 240mm2 cable diameter , 62.5 mm fiber Send your message to this supplier Message* Email* Phone or WhatsApp* Name Company Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Send Now Submission successful! 14.5mm 144 Core GYTS Fiber Optic Cord FRP Strength Member Ask Latest Price Product Detail Strength member : FRP strength member Fiber Type : G652D SM fiber Fiber Counts : 24 / 36 / 42 / 48 / 60 / 72 / 96 /144 Fiber Options : OS1 / OS2 / OM1 / OM2 / OM3 / OM4 Material Of Jacket : PE Cable Diameter : 14.5±0.5 Mm For 144core Contact Supplier Shenzhen Yutong Space Telecom Equipment Co., Ltd Active Member 5 Years guangdong, shenzhen Business Type : Manufacturer, Trading Company Main Products : Fiber Optic Cord, Fiber Optic Transceiver, Optical Fiber Module Employee Number : 50~100 Certification Level : Active Member Discover similar products Outdoor HDPE Sheath GYXTC8S 12 Core SM Fiber Optic Cord Contact Now APL 9mm 12 Core G652D Fiber Optic Cable For Communication Contact Now Figure 8 GYTC8S Self Supporting Fiber Optic Cable Armored 72 Core Fiber Optic Contact Now Outdoor GYXTW Fiber Optic Cable 2-24 Core Unitube Fiber Optic Cord Contact Now 48 Core Armored Duct Fiber Optic Cable Single Mode GYTA Fiber Optic Cord Contact Now OS1 OS2 GYXTC8S Kevlar Fiber Optic Cable 500m Self Supporting Contact Now 1.0 FRP GYFXTY Fiber Optic Cord UV Proof 12 Core Single Mode Contact Now FTTH GJXFH G657A LSZH Fiber Optic Cable OM1 OM2 OM3 OM4 Contact Now GJFPV Breakout Tight Buffered Multimode Fiber Optic Cable G657A1 G652D 24 Core Contact Now Duplex Zipcord Fiber Optic Cable 900um 600um Tight Buffered Fiber Cable Contact Now View More Find Similar Products By Category: Supplier Homepage Products Fiber Optic Cord MachineU China Products Home Appliance Home Appliance Contact Supplier Message* Email* Phone or WhatsApp* Name Company Submit Requirement Please reply me within 24 hours. Yes! I would like your verified suppliers matching service! Submitted successfully! Your request message has been successfully sent to the supplier. Please keep in touch and they will contact you as soon as possible. OK China Hot Products: A \| B \| C \| D \| E \| F \| G \| H \| I \| J \| K \| L \| M \| N \| O \| P \| Q \| R \| S \| T \| U \| V \| W \| X \| Y \| Z \| 0~9 Copyright © 2009-2025 Machineu.com. All rights reserved. Copyright © 2009-2025 Machineu.com. All rights reserved.
