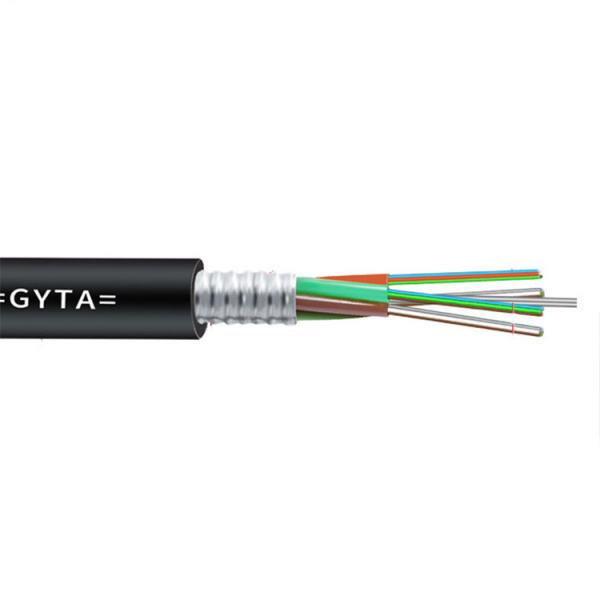

48 Core Armored Duct Fiber Optic Cable Single Mode GYTA Fiber Optic Cord
48 Core Armored Duct Fiber Optic Cable Single Mode GYTA Fiber Optic Cord
48 Core Armored Duct Fiber Optic Cable Single Mode GYTA Fiber Optic Cord
48 Core Armored Duct Fiber Optic Cable Single Mode GYTA Fiber Optic Cord
Specifications
Product name :
GYTA Optic Fiber Cable
Fiber Type :
G652D Or As Your Request
Fiber Count :
2-288core
Strength Member :
Steel Wire
Outer Sheath Material :
HDPE
Application :
Aerial / Duct
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

48 Core Single Mode Armored Duct GYTA Optic Fiber Cable

Description:

The fibers,250um,, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a waterresistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.

Characteristics:

1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Specially designed compact structure is good at preventing loose tubes from shrinking.
5. PE sheath protects cable from ultraviolet radiation.
6. The following measures are taken to ensure the cable watertight:
a: Steel wire used as the central strength member
b: Loose tube filling compound
c: 100% cable core filling
d: APL moisture barrier

Optical Fiber Characteristic:

No. of Fibers 2-36 38-72 74-96 98-120 122-144 146-216
Max No. of Fibers/Tube 6 12 12 12 12 12
No. of Tube(+Fillers) 6 6 8 10 12 18(2 layers)
Nominal Diameter 10 11 12 13 14 16
Cable Weight(kg/km) 90 120 140 170 190 210
Fiber Type G.652D/G.655/G.657/OM1/OM2/OM3/OM4/OM5
Max .Allowable Tension Short Term :3500N
Long Term:100N MAT:3.5KN RTS:9.0KN
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm) Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range -40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYTA-2~60 9.0 100 600/1500 300/1000 20D/10D -20~+70
GYTA-62~72 10 110
GYTA-74~96 11 130
GYTA-98~120 13 145
GYTA-122~144 15 195
