Outdoor HDPE Sheath GYXTC8S 12 Core SM Fiber Optic Cord
Outdoor HDPE Sheath GYXTC8S 12 Core SM Fiber Optic Cord
Outdoor HDPE Sheath GYXTC8S 12 Core SM Fiber Optic Cord
Outdoor HDPE Sheath GYXTC8S 12 Core SM Fiber Optic Cord
Specifications
Product name :
FTTH Indoor Fiber Cables
Central Strength Member :
Steel Wire
Fiber Type :
G652D Or As Your Request
Outer Sheath Material :
HDPE
Operating Temperature :
-40°C To+70°C
Fiber Count :
2-24 Core
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

Outdoor Figure 8 GYXTC8S 12 Core SM Fiber Optic Cable

Description:

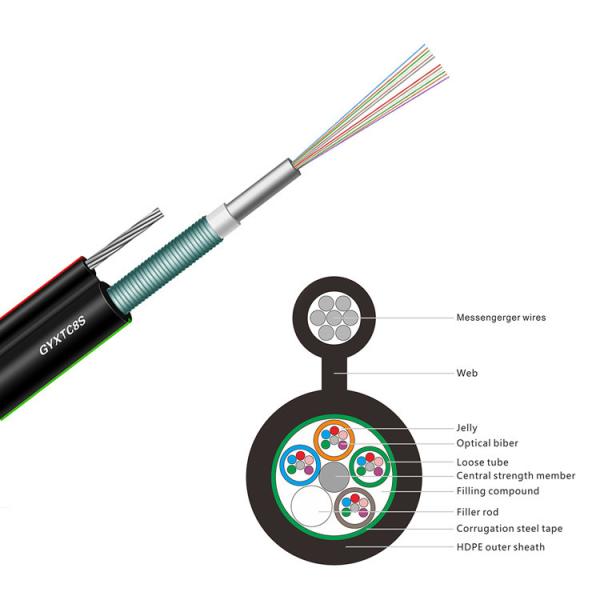

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

Characteristics:

◆ Good mechanical and temperature performance.
◆ High strength loose tube that is hydrolysis resistant.
◆ Special tube filling compound ensure a critical protection of fiber.
◆ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
◆ The following measures are taken to ensure the cable watertight:
➢ Steel wire used as the central strength member
➢ Loose tube filling compound
➢ 100% cable core filling
➢ PSP enhancing moisture-proof
➢ Water-blocking material

Optical Fiber Characteristic:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
GYXTC8S-2~12 7.6*14.5 115 1000/3000 300/1000 20D/10D -20~+70
GYXTC8S-14~24 8.2×15.1 128

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial.
3. Long distance and local area network communication.
