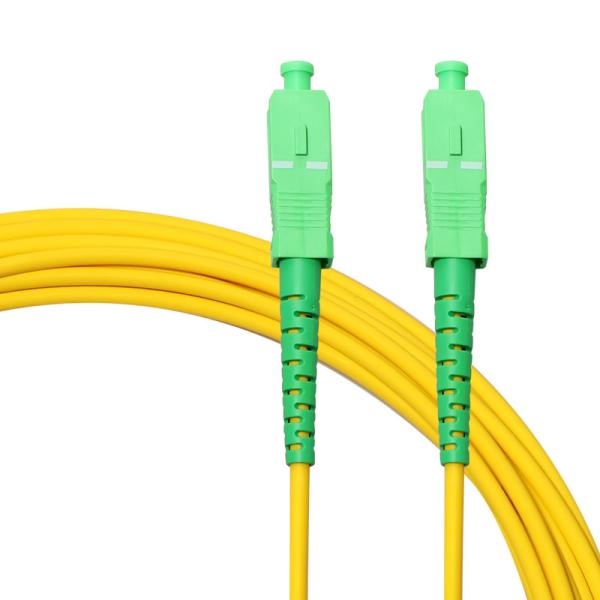

SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
SC LC ST FC MTRJ SMA Simplex Duplex Fiber Patch Cable 1.2mm 1.6mm Diameter
Specifications
Brand Name :
YT
Model Number :
SC LC ST FC MTRJ SMA905
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Diameter :
1.2mm,1.6mm,2.0mm,3.0mm
Insertion loss :
<0.25dB
Wavelength :
MM:850nm SM:1310nm/1490/1550nm
Jacket material :
LSZH,PVC,OFRN,ORNP
Jacket materia :
LSZH,PVC,OFRN,ORNP
Multi-Mode Fiber :
OM1,OM2,OM3,OM4
Description

SC LC ST FC MTRJ SMA simplex duplex fiber optic patch cable

Fiber optic patch cord is available in both singlemode and multimode versions. Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end. These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability

Mode
Single mode
Multimode
Polish
UPC
APC
PC
Insertion Loss
≤0.30dB
≤0.20dB
≤0.20dB
Return Loss
≥50dB
≥60dB
≥30dB
Test Wavelength
1310/1550nm
Durability(500 Matings)
≤0.2dB
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Fire Resistant
IEC 60794-2-30
Standards-Compliant
ROHS,IEC and GR-326
Fiber type
Single mode:
(1)9/125-G652D
(2)9/125-G655
(3)9/125-G657A,G657A2
(4)9/125-G657B3
Multimode:
(5)50/125-OM2
(6)62.5/125-OM1
(7)50/125-OM3
(8)50/125-OM4
(9)50/125-OM5
Fiber Brand
YOFC, Corning, Sumitomo, Fujikura
Connector
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type
Simplex ,Duplex
Cable diameter
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket
PVC, OFNR, LSZH, OFNP
length(M)
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

FEATURES

1. Low insertion loss and back reflection loss
2. Ferrule end surface pre-domed
3. Excellent mechanical endurance
4. Good in repeatability
5. Good in exchange
6. Green Production, CE, RoHS Standard

APPLICATION

1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
