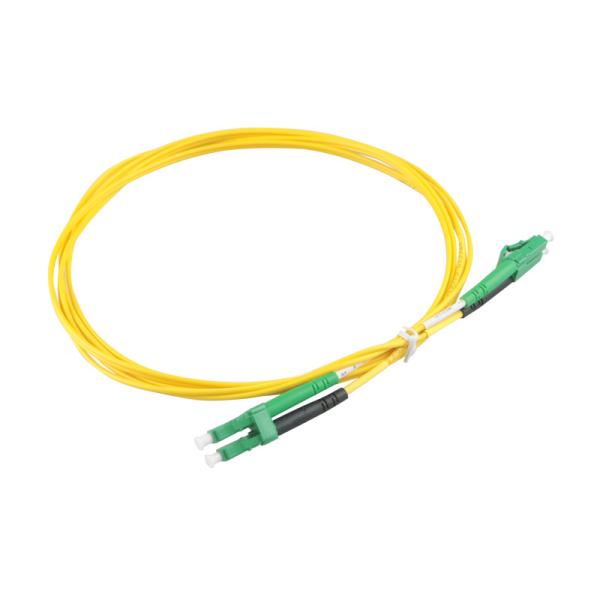

9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
9/125um SM Duplex LC to SC Fiber Jumper G657A2 Optical Fiber Jumper
Specifications
Brand Name :
YT
Model Number :
SC Optical Fiber Patch cord
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Dimension :
0.9mm ,2.0mm,3.0mm
Cable Quantity :
Duplex
Wavelength :
MM:850nm SM:1310nm/1490/1550nm
Fiber type :
G657A2
Core Type :
9/125um
Connector Type :
FC, SC, LC, ST, MTRJ, MU, E2000
Description

9/125 SM Duplex LC/PC to SC/PC LC-SC Fiber Optic Patch Cord Jumper Cable

Optical Fiber Patch Cord (Jumper)

Optical Fiber Patch Cord (Jumper) is a length of optical fiber with two ends adding connectors to connect beam path. Pigtail is a length of fiber permanently attached connector only at one end. Yogel patch cords assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three

kinds of polished fiber end-face: PC, UPC and APC .we employ advanced technique and equipment to

manufacture so as to ensure the high quality of mass production.

Specifications

Item Parameter
Single Mode Multi-Mode
PC UPC APC PC
Test wavelength 1310/1550nm 850/1300nm
Insertion loss Typ. ≤0.15 dB, Max. ≤0.30 dB
Return Loss ≥45 dB ≥50 dB ≥60 dB ≥35dB
Repeatability ≤0.10 dB
Changeability ≤0.20 dB
Durability (1000 Mating) ≤0.20 dB
Operation temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Connector end SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cable jacket PVC, OFNR, LSZH, OFNP
Cable diameter 3.0mm, 2.0mm, 1.6mm, 1.2mm, 0.9mm
Fiber count Simplex
Fiber type

Single Mode: G. 652D, G. 655, G. 657A2, etc.

Multi-Mode: OM1(62.5/125), OM2, OM3, OM4, OM5, etc. (50/125)
Cable length 0.5m, 1m, 2m, 5m, 10m, 20m, 25m, etc.
Fiber brand Corning, Sumitomo, Fujikura, YOFC, TFO
Fire resistant IEC 60794-2-30
Standards Compliant ROHS, IEC, GR-326

Features

Ÿ Low insertion loss & High return loss

Ÿ Connectors compliant with Telcordia GR-326

Ÿ Cable compliant with Telcordia GR-409

Ÿ Mechanical performance compliant with IEC 61754-4

Ÿ RoHS compliant - Riser, Plenum, and LSZH rated cables available

Applications

Building interconnections (campus LAN)

Connector end in optical distribution boxes and termination boxes

Trunk lines direct to telecommunications closet

Cross-connect in outdoor closet

Distribution connect in central office ODF / MDF

Fiber patch panels within communications closets

Links between Internet electronic equipment (SFP module, Switch, OLT, ONU etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.) and fiber patch panels
