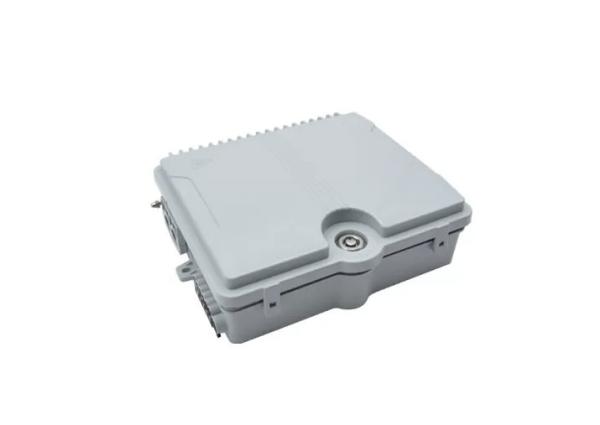

1*32 Way Fiber Optic Termination Box 200*150*46mm 2.5KG Fiber Splitter Distribution Box
1*32 Way Fiber Optic Termination Box 200*150*46mm 2.5KG Fiber Splitter Distribution Box
1*32 Way Fiber Optic Termination Box 200*150*46mm 2.5KG Fiber Splitter Distribution Box
1*32 Way Fiber Optic Termination Box 200*150*46mm 2.5KG Fiber Splitter Distribution Box
Specifications
Brand Name :
YT
Model Number :
Fiber Optic Splitter Distribution Box
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
MAX Core :
32 Core
Material :
ABS
Protection Grade :
IP 55
Dimensions :
200*150*46mm
Adapter Type :
SC/APC Or SC/UPC
Installation :
Wall Mounting Or Pole Mounting
Description

FTTH ABS and PC Fiber Optic Distribution Box / 1*32 Way fiber optic junction box

Distribution box Type outdoor Optical Distribution Boxes is designed to connect feeder/distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.

Main Technical Parameters:

Fiber Terminal Box Parameter
Color Grey White
Installation Wall Mounting or Pole Mounting
Protection Grade: IP 55
Application Adapter SC/APC or SC/UPC
Application Cable Outdoor or indoor
MAX Core 32 Core
Adapter and Pigtail With or Without is optional
Dimension 342mm x 267mmx 127mm
Material ABS / PC / SMC
Dimensions 420mm x 320mm x 130mm (W x H x D)
Weight 2.5KG
Working Temperature -40℃~+60℃
Working Humidity ≤95%(+40℃)
Atmospheric Pressure 70Kpa~106Kpa
Box door opening angle ≥180°
Grounding voltage level ≥3000V(DC)/10mA/1 min
Insulation Resistance 2X104MΩ/500V

Feathure:

1) Be made of high impact plastic PC/ABS
2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
4) Up to 16 FTTH drops ,2 inlet ports, 32 outlet ports
5) Wall and pole mountable
6) The design of the two-tier structure, the upper wiring layer optical splitter, lower for fiber splicing layer.

Application:

1) Widely used in FTTH access network
2) Telecommunication Networks
3) CATV Networks
4) Data communications Networks
5) Local Area Networks
