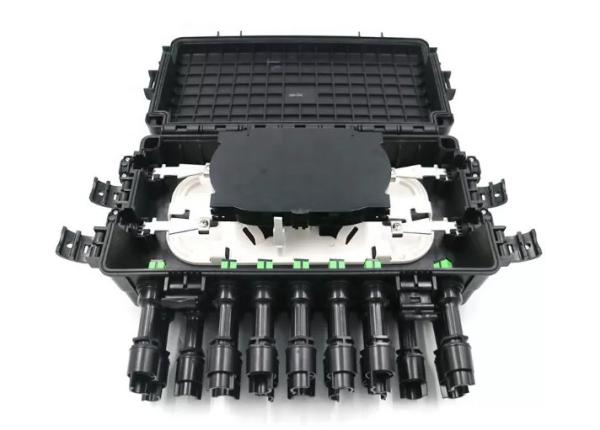

16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
Specifications
Brand Name :
YT
Model Number :
16 core Splitter Distribution Box
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Material :
Modified P.P+GF
IP Level :
IP65
No. Of Fiber :
16 fibers
Input Cable Dia :
12-15mm
Dimensions :
359*277*120mm
Description

Fast Connector Exit Optic Splice Nap Closure IP65 16core Outdoor Splitter Distribution Box

Description:

CFO-16S-NAP is used to splice cable with max. 12.5mm dia.and allow 16 pcs drop cable with fast connector exit. Adopt engineering plastic in scientific formula with excellent mechanical strength, can prevent aging effectively caused by cold, hot, oxygen, UV etc. Can splice and connect the optic fibers in aerial, pole or wall mounting environment. Reliable sealing performance, convenient for repeated use

Specification:

Model Dia.(mm) Biggest Point Max Capacity No. Of Ports Available Splitter Max. Adapter Number
CFO-16S-NAP 359*277*120 48 fibers 24F/Tray 2pcs round on both side: for 8-12mm 16pcs fast connector ports for drop cable 1pc 1*16 or 2pcs 1*8 Mini PLC Splitter 16

Main Technical Index:

Available optic fiber bending radius :≥37.5mm

Excessive loss fiber length :≥1.6m

Max splice capacity:48F (single fiber)

Working Temperature:-40ºC~+70ºC

Lateral pressure resistance:≥2000N/10cm

Impact resistance :≥20N.m

Features:

  • Ingress Protection: IP65
  • Seal with silicon rubber ring at the closure body and entry ports. Adopt plastic clip type lock for easy reopen and maintenance
  • Provide 4 pcs 12~24F entry port block and sealing tape for flexible application. Guarantee a reliable and practical seal performance of the entry ports
  • Adapter number: max hold 16pcs simplex SC installation sized adapters.
  • Splitter:Available for 1pc 2:16 or 2 pcs 1:8 micro PLC splitter's adapters
  • All the metal part use Stainless Steel material.
  • Advantage of fast connector exit: No need to open the closure for adjusting the signal. Only plug the fast connectors to adjust. More convenience.

16 Core Fiber Splitter Distribution Box 48F Outdoor Fiber Optic Termination Box
