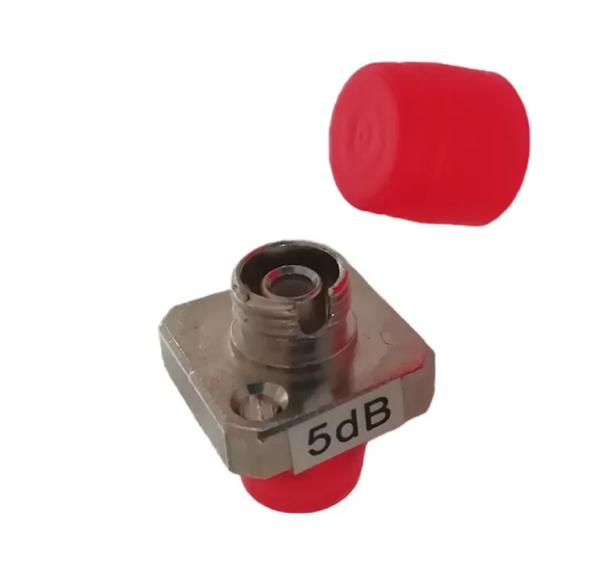

FTTH FC UPC 5dB Fiber Optic Attenuator Single Mode Attenuator
FTTH FC UPC 5dB Fiber Optic Attenuator Single Mode Attenuator
FTTH FC UPC 5dB Fiber Optic Attenuator Single Mode Attenuator
FTTH FC UPC 5dB Fiber Optic Attenuator Single Mode Attenuator
Specifications
Brand Name :
YT
Model Number :
SC APC Singlemode Fast Connector
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
Fiber Attenuator
Type :
Single Mode
Material :
Plastic/Mental
Connector Type :
FC UPC
Application :
FTTH FTTB FTTX Network
Attenuation Range :
1-30dB / Custom
Description

FTTH FC Upc Single Mode Multi Mode Fiber Optic Attenuator

Attenuator Description:

Fiber Optic Attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. The basic types of optical attenuators are fixed and variable, and are designed to be used with various kinds of fiber optic connectors.

Attenuator Features

1. Low insertion loss and back reflection

2. Definable attenuation from 1dB to 30dB

3. PC, UPC and APC polish types

4. Available with FC, SC, ST and LC terminations

Attenuator Applications

1. Telecommunication Networks

2. Local Area Network

3. FTTH and FTTx

4. Fiber Optic Sensors

5. Test & measurement

6. DWDM applications

Attenuator Specification

Item Parameter
Model Fixed, Female&Male, In-line, Variable
Operating Wavelength SM:1310/1550nm MM: 850/1300nm
Attenuation Range 1~30dB
Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH
