Grey Black 0.5m 1m 1x32 PLC Splitter Rack Mount APC Fiber Optic Splitter
Grey Black 0.5m 1m 1x32 PLC Splitter Rack Mount APC Fiber Optic Splitter
Grey Black 0.5m 1m 1x32 PLC Splitter Rack Mount APC Fiber Optic Splitter
Grey Black 0.5m 1m 1x32 PLC Splitter Rack Mount APC Fiber Optic Splitter
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Type :
1x32
Length :
0.5m/1m
Fiber Type :
0.9mm/2.0mm
Wavelenghth :
1260-1650nm
Jacket Material :
LSZH,Hytrel
Application :
FTTH FTTB FTTX PON CATV
Connector Type :
SC/APC Or SC/UPC
Description

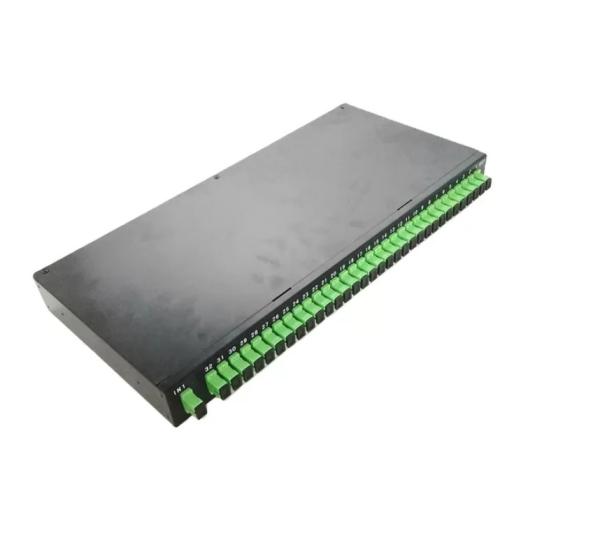

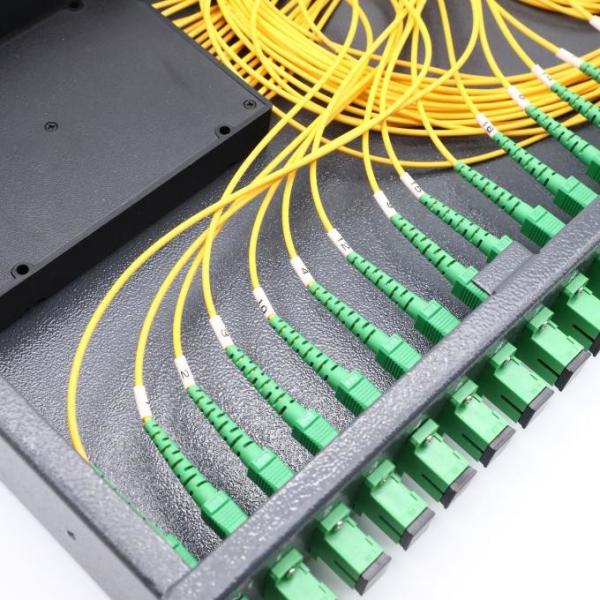

Grey Black 1x32 Rack Mount Apc Fiber Optic PLC Splitter

PLC Splitter also named Planar Lightwave Circuit Splitters or balanced optical splitter, this optical splitter are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. The 1x16 optical splitter with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength. some of its most notable characteristics, its compact size, the low insertion loss and the excellent uniformity offered, giving this splitter model a high degree of reliability, The Balanced 1x16 optical splitter was application in FTTh / FTTx networks and can also be used in other applications such as passive optical networks, fibrotic sensors, local area networks and test instruments.

Plc Splitter Specifications

Parameter Specification
Operating Wavelength (nm) 1260 ~ 1650
Type 1x4 1x8 1x16 2x4 2x8 2x16 1x32 2x32 1x64
Insertion Loss (dB) Max. * <7.3 <10.5 <13.5 <7.6 <11.2 <14.5 <16.2 <18.2 <20.5
Uniformity (dB) Max.* <0.8 <1.0 <1.5 <1.0 <1.5 <2.0 <2.0 <2.5 <2.5
PDL(dB)Max.* <0.2 <0.2 <0.3 <0.3 <0.3 <0.4 <0.3 <0.4 <0.3
Directivity (dB) ≥55
Return Loss (dB) UPC ≥55 APC ≥60
Operating Temperature (°C) -5~ +75
Storage Temperature (°C) -40 ~ +85
Fiber length 1m or custom length
Fiber Type Corning SMF-28e fiber
Connector Type Custom specified
Power Handling (mW)

300

Plc Splitter Feature

1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability

Plc Splitter Application

1. Access Network
2. Telecom/CATV
3. Active device termination
4. Local Area Networks (LANS)
5. Metro
6. Test equipment
7. Data processing network
8. Wide Area Networks (WANS)
9. FTTX
