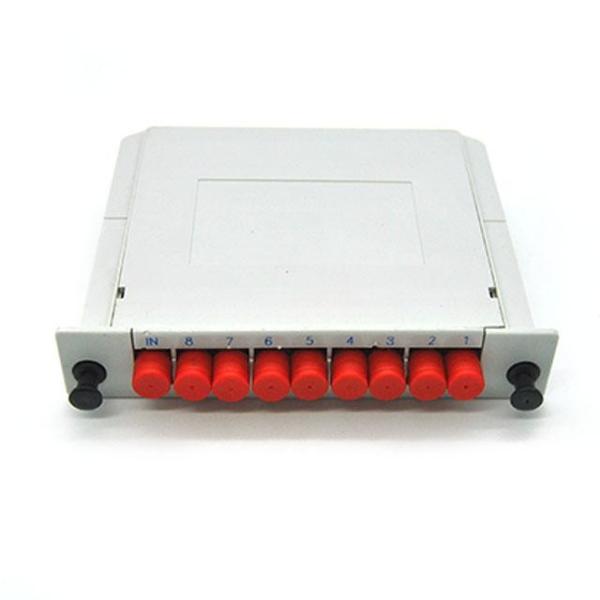

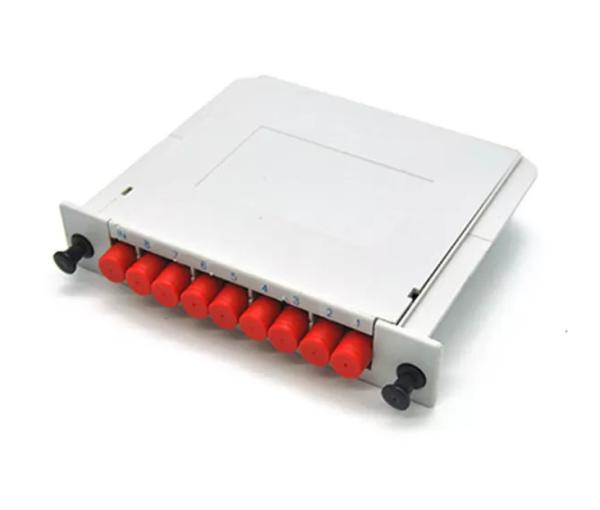

Hytrel Jacket FC UPC 0.9mm Passive Optical Splitter Cassette Type
Hytrel Jacket FC UPC 0.9mm Passive Optical Splitter Cassette Type
Hytrel Jacket FC UPC 0.9mm Passive Optical Splitter Cassette Type
Hytrel Jacket FC UPC 0.9mm Passive Optical Splitter Cassette Type
Specifications
Brand Name :
YT
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Type :
Cassette Type
Length :
0.5m/1m
Fiber Type :
G657A
Wavelenghth :
1260-1650nm
Jacket Material :
LSZH,Hytrel
Application :
FTTH FTTB FTTX PON CATV
Connector Type :
FC/APC
Description

Inseration Card 1x8 Fc/Upc Passive Fiber Optic Splitter Types

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using splitter optical waveguide technology.

2). It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). We provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). All products meet GR-1209-CORE and GR-1221-CORE requirements.

Fiber Optic PLC Splitter Features

1. Low Insertion loss and Low PDL

2. Uniform power splitting

3. High reliability

4. Excellent environmental stability

5. Compact size and various package

Fiber Optic PLC Splitter Applications

1. FTTx Systems

2. Digital, hybrid and AM-Video systems

3. LAN,WAN and Metro Networks

4. CATV systems

5. Other applications in fiber

Fiber Optic PLC Splitter Specification

Parameters Inseration Card 1x8 Fc/Upc Passive Fiber Optic Splitter Types
Operating Wavelength (nm) 1260~1650nm
Fiber Type G657A customer specified
Insertion Loss (dB)(S/P Grade) 10.5/10.2
Loss Uniformity (dB) 0.8
Return Loss (dB) (S/P Grade) 50/55
Polarization Dependent Loss(dB) 0.3
Directivity (dB) 55
Wavelength Dependent Loss(dB) 0.3
Temperature Stability(-40~85 °C)(dB) 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C)

-40~85
