Aluminum 19'' 1x32 PLC Splitter G652D G657A1 Fiber Optic Splitter
Aluminum 19'' 1x32 PLC Splitter G652D G657A1 Fiber Optic Splitter
Aluminum 19'' 1x32 PLC Splitter G652D G657A1 Fiber Optic Splitter
Aluminum 19'' 1x32 PLC Splitter G652D G657A1 Fiber Optic Splitter
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
19 Inch PLC Splitter Box
Material :
Aluminum
Fiber Connector :
SC/LC/FC/ST
Package Type :
Rack Mount
Operating Temperate :
-40~85°C
Application :
FTTH FTTB FTTX PON CATV
Description

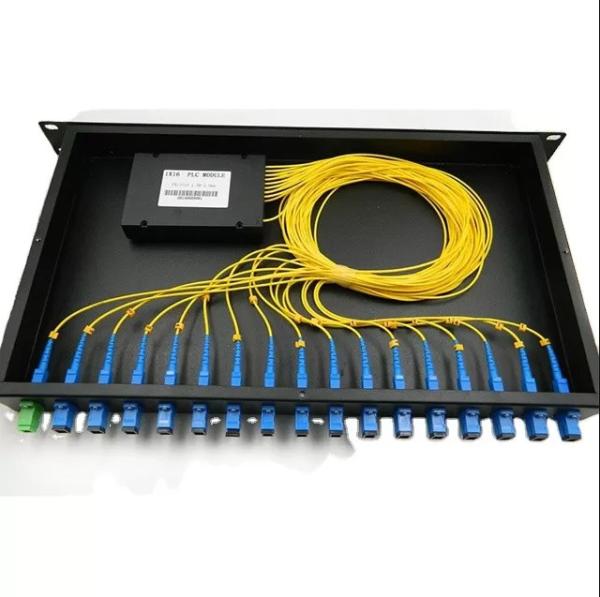

Aluminum 19 Inch Rack Mounted Type 1x32 PLC Splitter

Aluminum 19 inch Rack Mounted Type PLC Splitter 1x16 1x32 Fiber Optical Splitter Optic Box

Quick Detail:

  1. Fiber type: G652D, G657A1, G657A2
  2. Cable jacket: PVC, LSZH, OFNR, OFNP
  3. Cable length: 1M, 1.5m…customized
  4. Package: ABS, Steel tube
  5. Connector: SC, LC, ST, FC, MU, E2000
  6. Ferrule end-face: PC, UPC, APC

Specification:

Table 1 – 1×N PLC Splitter

Parameters 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Table 2 – 2×N PLC Splitter

Parameters 2×2 2×4 2×8 2×16 2×32 2×64
Operating Wavelength (nm) 1260~1650
Fiber Type G657A or customer specified
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2
Return Loss (dB) (P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Package Steel Tube or ABS

Quick Detail:

  1. Fiber type: G652D, G657A1, G657A2
  2. Cable jacket: PVC, LSZH, OFNR, OFNP
  3. Cable length: 1M, 1.5m…customized
  4. Package: ABS, Steel tube
  5. Connector: SC, LC, ST, FC, MU, E2000
  6. Ferrule end-face: PC, UPC, APC

Description:

We can provide whole series of 1xN and 2xN splitter products that are tailored for specific applications.

Features:

  1. Excellent directivity
  2. Good channel-to-channel uniformity
  3. High cost-effectiveness
  4. High environmental and mechanical stability

Applications:

  1. Fiber optical communication system
Product tags

fiber optic 1x32 plc splitter

,

fiber optic 1x8 plc splitter

,

optical fiber 1x4 plc splitter
