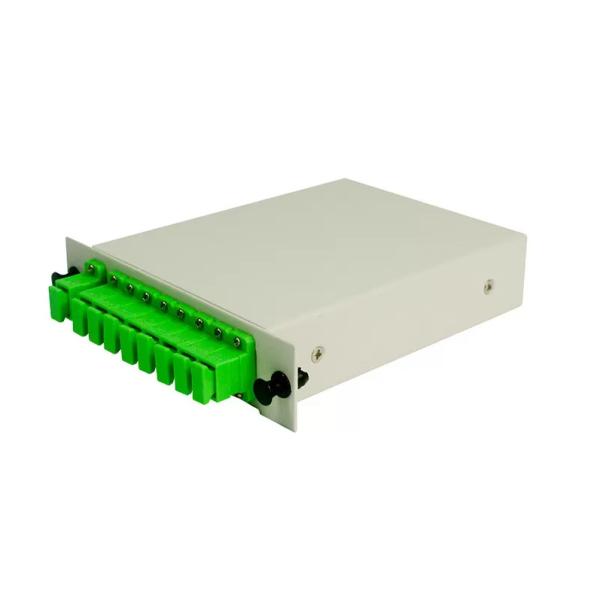

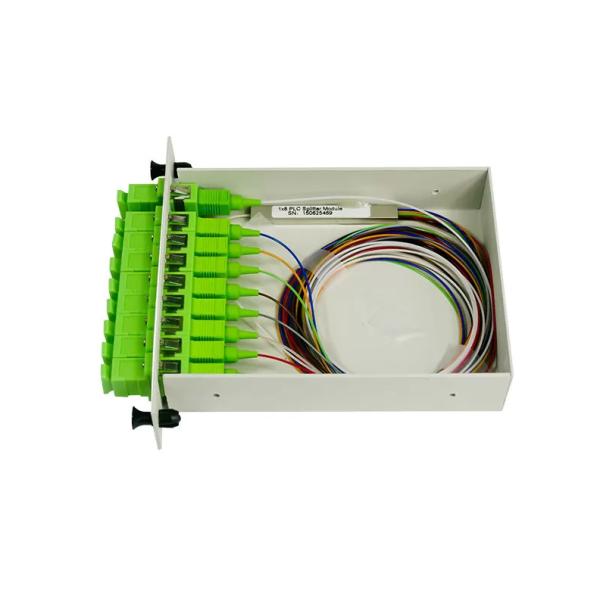

Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Cassette Type 1650nm SC APC Splitter 1x8 Fiber Optical PLC Splitter
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
Cassette Type 1*8 Fiber Optical PLC Splitter
Cassette Color :
Gray Or Ivory White
Return Loss (dB) :
≥60
Fiber Connector :
SC/APC
Fiber Diameter :
0.9mm
Application :
FTTH FTTB FTTX PON CATV
Description

1650nm SC APC Cassette Type 1x8 Fiber Optical PLC Splitter

with SC/APC connectors Cassette Type 1*8 Fiber Optical PLC Splitter

Description:

Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical distributor (POS) use.

Specification:

Parameter/Type Nx2(N=1or2) Nx4(N=1or2) Nx8(N=1or2) Nx16(N=1or2) Nx32(N=1or2) Nx64(N=1or2)
Fiber 9/125 um SMF-28e or customer appoint
Operating Wavelength(nm) 1260~1650(nm)
Insertion Loss ≤3.9dB ≤7.1dB ≤10.3dB ≤13.3dB ≤16.3dB ≤19.8dB
Loss Uniformity(dB) ≤0.6dB ≤0.6dB ≤0.8dB ≤1.2dB ≤1.5dB ≤2.0dB
Polariation Dependent Loss ≤0.15dB ≤0.15dB ≤0.2dB ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss UPC≥50dB APC≥60dB
Directivity ≥55dB
Working Temperature(℃) -40°C to +85°C

FEATURES

Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package

Applications:

Optic communication system

LAN

CATV

Test instrument

Fiber optic sensor
