Bare Ribbon OM3 12F Fan Out Fiber Optic Pigtail ST UPC Pigtail Patch Cord
Bare Ribbon OM3 12F Fan Out Fiber Optic Pigtail ST UPC Pigtail Patch Cord
Bare Ribbon OM3 12F Fan Out Fiber Optic Pigtail ST UPC Pigtail Patch Cord
Bare Ribbon OM3 12F Fan Out Fiber Optic Pigtail ST UPC Pigtail Patch Cord
Specifications
Product Name :
Fiber Optic Pigtail
Fiber Count :
12
Jacket Material :
PVC
Connector Type :
ST
Cable Diameter :
0.9mm
Wavelength :
850nm
Application :
FTTA FTTH BBU RRU RRH LTE & Base Station
Insertion Loss :
≤0.3dB
Return Loss :
>60dB
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

ST UPC Pigtail Patch Cord Multimode OM3 Bare Ribbon Fanouit PVC Jacket

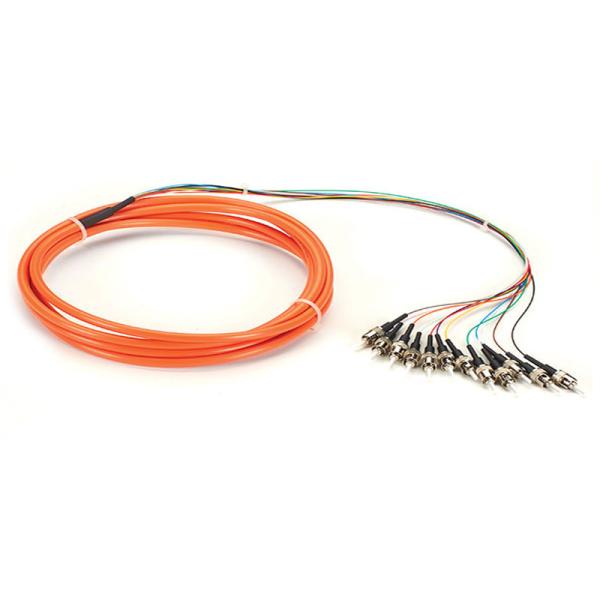

12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1x12 fanout kit. The fanout cable can be 900μm or 2.0mm cable. Our 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

Cable structure


1. The ribbon cable is flat. The jacket ribbon fiber cable includes: fiber ribbon, aramid yarn and outer jacket;
2. Bare ribbon fiber cable has no outer jacket.

Complied with or exceeds Standard

● The connector could be SC,FC,LC,ST,MU,E2000 etc.
● The cable could be G652D,G655,G657,OM1,OM2,OM3 etc.
● Fiber count: 4.6.8.12.

Features


1. Top quality ceramic ferrule . Top quality ber cable;
2. Low insertion loss and high return loss . UPC, APC or PC polish;
3. With a fan out kit at the junction of fibers, the fiber is flat type;
4. Good exchangeability;
5. GR-326-Core, UL94V-O, TIA/EIA-568-B.3, RoHS.

Application

1. Local area networks (LAN);
2. Wide area networks (WAN);
3. CATV, metro test equipment;
4.Telecommunication networks;
5. Data processing networks;
6. Premise installations;
7. Video and military active device termination.

Technical Parameter

Fiber Type SM MM

Connector Tytpe

 MTRJ

D4, FC, SC, ST, LC,

E-2000, MU

D4, FC, SC, ST, LC,

E-2000, MU

 MTRJ
Insertion Loss (Typical) ≤0.4dB ≤0.2dB ≤0.4dB ≤0.2dB
Insertion Loss (Max) ≤0.5dB ≤0. 3dB ≤0.3dB ≤0.5dB

Return Loss (Typical)

 PC ≥50dB
APC ≥65dB
UPC ≥55dB ≥55dB
Mating Durability ≤0.2dB
Durability ≥1000 times
Storage Temperature - 40～+ 85

OVERVIEW
Clad Diameter 125 Micron
Core Diameter 62.5 Micron
No. Of Fiber 2
Technology Mode Conditioning
Push/Pull Tabs No
Weight (Lbs) 0.09
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty

Legend / Key
Connectors Fiber Modes Fiber Count Jacket Color Jacket Type UOM (Unit of Measure) Cable Diam Ø

D: SC/UPC

E: SC/APC

F: E2000

G: E2000/APC

H: FC/UPC

I: FC/APC

K: LC/UPC

L: LC/APC

S: ST/UPC

Y: MT-RJ

9: 9/125μm Single-mode

6: 6.25/125μm Multimode

7: 50/125μm OM3 Laser Optimized Multimode

4: 50/125μm OM4

2: 200/230μm Multimode

1: 100/140μm Multimode

P: Panda PM Fiber

B: Bowtie PM Fiber

E: Eliptical PM Fiber

S: Simplex (1 Fiber)

D: Duplex (2 Fiber)

Y: Yellow

O: Orange

A: Aqua

L: Blue

G: Green

E: Brown

S: Slate

W: White

R: Red

B: Black

U: Purple

P: Pink

R: Riser (OFNR)

P: Plenum (OFNP)

L: Low Smoke Zero Halogen (LSZH)

N: None

V: PVC Jacket

M: Meters

F: Feet

I: Inches

C: Centimeters

2: 2mm Jacket

3: 3mm Jacket

4: 900μm (.9mm)

6: 250μm Bare

7: 500μm Bare

Bare Ribbon OM3 12F Fan Out Fiber Optic Pigtail ST UPC Pigtail Patch Cord
