FTTH 2.0mm 3.0mm SC UPC Pigtail G652D Pigtail Fiber Cable With Connector
FTTH 2.0mm 3.0mm SC UPC Pigtail G652D Pigtail Fiber Cable With Connector
FTTH 2.0mm 3.0mm SC UPC Pigtail G652D Pigtail Fiber Cable With Connector
FTTH 2.0mm 3.0mm SC UPC Pigtail G652D Pigtail Fiber Cable With Connector
Specifications
Product Name :
Fiber Optic Pigtail
Fiber Type :
G652D/G657A1/G657A2/Customized
Jacket Material :
PVC/LSZH
Connector Type :
SC/APC
Cable Diameter :
0.9/2.0/3.0mm
Cable Length :
1, 2, 3 Meter Or Customized
Application :
FTTA FTTH BBU RRU RRH LTE & Base Station
Insertion Loss :
≤0.3dB
Return Loss :
>60dB
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

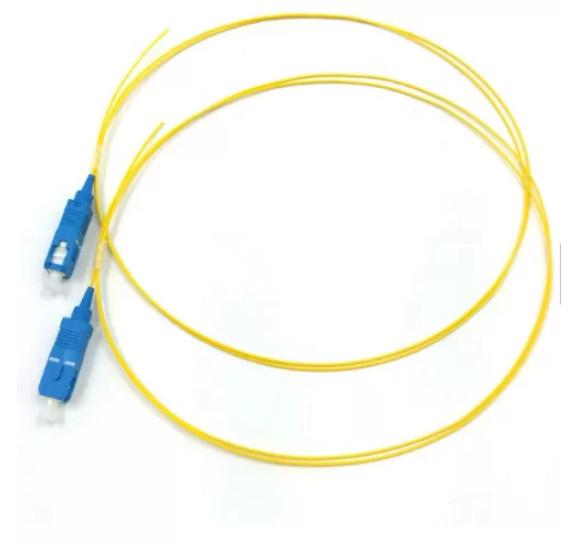

SC UPC FTTH 0.9mm Fiber Optic Pigtail With Connector

Fiber pigtail is a single, short, usually tight-buffered, optical fiber that has an optical connector pre-installed on one end

and a length of exposed fiber at the other end.The end of the pigtail is stripped and fusion spliced to a single fiber of

a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk "breaks out" the multi-fiber cable into its component fibers

for connection to the end equipment.Pigtails can have female or male connectors. Female connectors could be mounted

in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other

fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.

Pigtail Features

1. Low Insertion Loss

2. High Return Loss

3. Good Repeatability

4. Good Exchangeability

5. High Temperature Stability

Pigtail Application

1. Optic-fiber Communication Systems

2. Optic-fiber Data Communications

3. Optic-fiber Access Networks

4. Optic-fiber CATV

5. Test Equipment

6. Optic-fiber Sensors

Pigtail Parameters

ITEM Sc/Upc Pigtails FTTH Singlemode Fiber Optic Pigtail With Connector
BRAND OEM
Place China
Application Telecommunication
Type Singlemode
Fiber Type G652D, G657A
Material PVC, LSZH
Certification ISO9001
Connector SC/UPC
Product name fiber optic pigtail
Warranty 3 Years
Length 1M, 2M, 3m...Customized
Wavelength 1310nm/1490nm/1550nm
