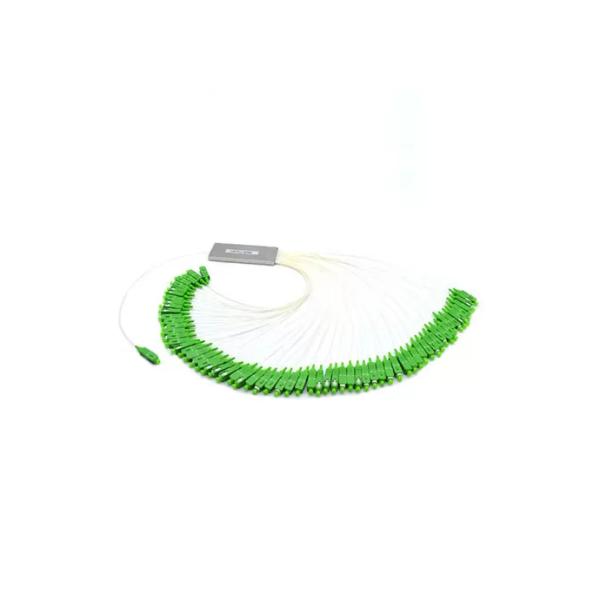

G657A1 1x64 Fiber Optic PLC Splitter 1260nm Mini Type 1M 2M 3M
G657A1 1x64 Fiber Optic PLC Splitter 1260nm Mini Type 1M 2M 3M
Specifications
Brand Name :
YT
Model Number :
ST/PC-SC/PC SM 3M
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Fiber Type :
G657A1 Or As Requested
Structure Type :
Steel Tube
Fiber Connector :
SC,FC,LC,ST And More
Wavelenghth :
1260-1650nm
Pigtail Length :
1M;2M;3M Or As Requested
Application :
FTTH FTTB FTTX PON CATV
Description

1x64 Fiber Optic PLC Splitter Mini Type Low Insertion Loss Steel Tube Structure

Planar Lightwave Circuit Splitter (PLC Splitter) is based on planar waveguide optical power distribution products, with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics, generally used in passive optical network (EPON, BPON, GPON, etc.) to realize the optical power splitting. Our PLC splitters are compliant with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD/T 1117-2001 and RoHS standards.

Technical Performance:

Table1. 1XN PLC splitter(with connector)

Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) ≤4.3 ≤7.5 ≤11.0 ≤14.0 ≤17.0 ≤21.0
Loss Uniformity (dB) ≤0.6 ≤0.6 ≤0.8 ≤1.2 ≤1.5 ≤1.8
PDL (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Return loss(dB) UPC≥50dB；APC≥55dB
Directivity (dB) ≥55
Pigtail Length (m) 1m or customer specified
Fiber Type G657A or customer specified
Operation temperature(℃) -40~85

Note:

All measurements were done at room temperature.

Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600～1650nm,then insertion loss would be add 0.3dB based on above parameters.

Table2. 2XN PLC splitter(with connector)

Parameters 2x2 2x4 2x8 2x16 2x32 2x64
Operating Wavelength (nm) 1260～1650
Insertion Loss (dB) ≤4.5 ≤8.0 ≤11.7 ≤14.7 ≤17.9 ≤21.2
Loss Uniformity (dB) ≤0.8 ≤1.0 ≤1.0 ≤1.5 ≤2.0 ≤2.5
PDL (dB) ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Return loss(dB) UPC≥50dB；APC≥55dB
Directivity (dB) ≥55
Pigtail Length (m) 1m or customer specified
Fiber Type G657A or customer specified
Operation temperature(℃) -40~85

Note:

All measurements were done at room temperature.

Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600～1650nm,then insertion loss would be add 0.3dB based on above parameters.

Features:

Excellent Uniformity
High reliability, stability
The quality is more credible and stable than fusion coupler splitter
With low insertion loss, Low Polarization Dependent Loss, better return loss and the directivity,
Broadband operating, wavelength :1260nm ~1650nm wavelength range to achieve the planned distribution of optical power

Excellent Environmental & Mechanial Stability
Qualified Under Telcordia GR-1221 and GR-1209

Specifications:

1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC

Applications:

FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
Cable Television
Test Equipments
