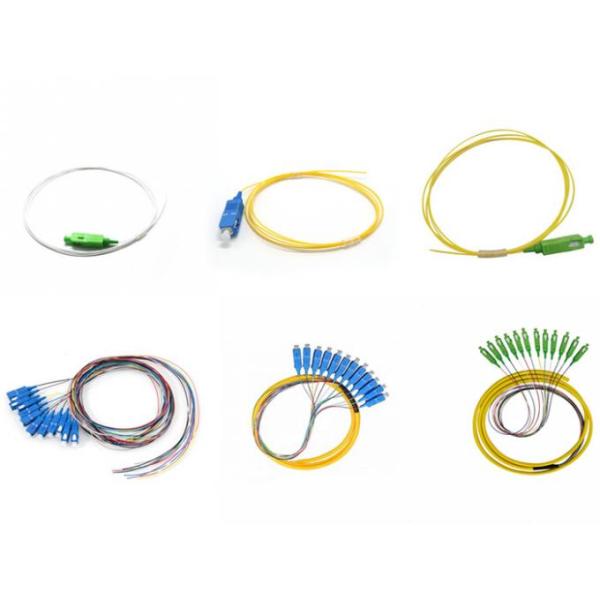

12 Color Bundle G657A1 Single Mode Pigtail SC APC Fiber Optic Pigtail
12 Color Bundle G657A1 Single Mode Pigtail SC APC Fiber Optic Pigtail
12 Color Bundle G657A1 Single Mode Pigtail SC APC Fiber Optic Pigtail
12 Color Bundle G657A1 Single Mode Pigtail SC APC Fiber Optic Pigtail
Specifications
Product Name :
Fiber Optic Patch Cord
Fiber Type :
G652D/G657A1/G657A2/Customized
Jacket Material :
PVC/LSZH
Connector Type :
SC/APC
Fiber Count :
2 Fibers
Cable Diameter :
0.9mm
Cable Length :
1, 2, 3 Meter Or Customized
Application :
FTTA FTTH BBU RRU RRH LTE & Base Station
Place of Origin :
china shenzhen
Brand Name :
YT
Certification :
ISO, SGS, ROHS
MOQ :
10 pcs
Price :
Negotiation
Delivery Time :
3-7days
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Description

12 Color Bundle Sc Apc 1M Fiber Optic Pigtail Single Mode

Fiber pigtail is a single, short, usually tight-buffered, optical fiber that has an optical connector pre-installed on one end and a length of exposed fiber at the other end.

The end of the pigtail is stripped and fusion spliced to a single fiber of a multi-fiber trunk. Splicing of pigtails to each fiber in the trunk "breaks out" the multi-fiber cable into its component fibers for connection to the end equipment.

Pigtails can have female or male connectors. Female connectors could be mounted in a patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch fibers. Alternatively they can have male connectors and plug directly into an optical transceiver.

Pigtail Parameters

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G657A OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80
Cable Length (M) 1M/1.5M/2M...

Pigtail Features

1. Low Insertion Loss

2. High Return Loss

3. Good Repeatability

4. Good Exchangeability

5.High Temperature Stability

Pigtail Application

1. Optic-fiber Communication Systems

2. Optic-fiber Data Communications

3. Optic-fiber Access Networks

4. Optic-fiber CATV

5. Test Equipment

6. Optic-fiber Sensors

12 Color Bundle G657A1 Single Mode Pigtail SC APC Fiber Optic Pigtail
