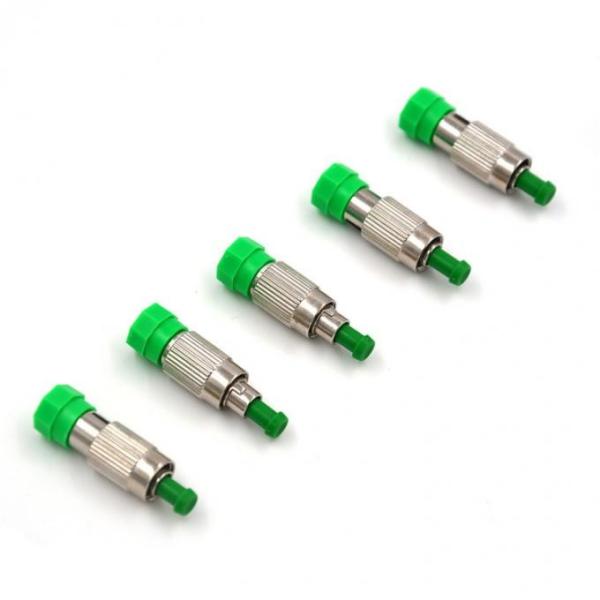

Male To Female 1000mW FC APC Fiber Optic Attenuator 10db Plug Type
Male To Female 1000mW FC APC Fiber Optic Attenuator 10db Plug Type
Male To Female 1000mW FC APC Fiber Optic Attenuator 10db Plug Type
Male To Female 1000mW FC APC Fiber Optic Attenuator 10db Plug Type
Specifications
Brand Name :
YT
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
Attenuator
Attenuation Accurancy :
1-9dB ±0.5dB, 10-30dB ±10%
Attenuation Range :
0-30dB
Return Loss :
PC≥45 DB; UPC≥50 DB ;APC ≥60 DB
Repeatability :
1000 Times
Operating Wavelength (nm) :
1260~1620(SM)
Connector :
FC APC
Description
10db Plug Type Male To Female FC APC Optical Fiber Attenuator
FC APC Singlemode plug type 3db 5db10db 15db Male to Female optical fiber attenuator
Product Description

Optical attenuator is a passive device used to reduce the power level of an optical signal. It could be applied to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.

CY COM offers LC,FC,SC,ST and MU fixed attenuator with different attenuation level, from 1dB to 30dB.

Specification:

Item Parameter
Model Fixed, Female&Male, In-line, Variable
Operating Wavelength SM:1310/1550nm MM: 850/1300nm
Attenuation Range 1~30dB
Return Loss PC:≥50dB UPC: ≥55dB APC: ≥60db
Attenuation Tolerance ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Working Temperature -40°C~+75°C
Storage Temperature -40°C~+ 85°C
Humidity 95%RH

Features :

  1. Fixed Attenuator(Fixed Type FC, SC, ST, LC)
  2. Female to male type ( FC, SC, ST, LC)
  3. In-Line Attenuator(Fused and Fiber Jumpers Type)
  4. High Return Loss(In-Line and High RL Type)
  5. Exact and Stable Attenuation(Variable Type)

Application:

  1. Testing equipment
  2. Fiber optical CATV
  3. Fiber optical sensor
  4. Fiber optical telecommunication system

Our Service:

1. Any question will be replied within 24 hours.
2. Professinal manufacture,Welcom to vist our company.
3. 100% test before shipping.
4. OEM/ODM is avaliable(As required print logo and customized color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)
