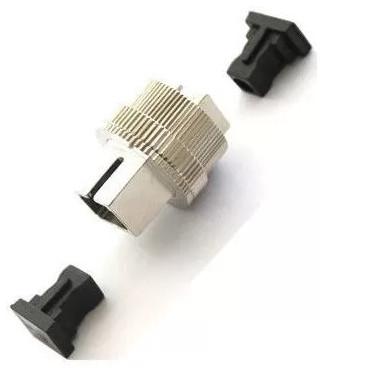

1310nm Adjustable Fiber Optic Attenuator SC FC LC Optical Attenuator
1310nm Adjustable Fiber Optic Attenuator SC FC LC Optical Attenuator
Specifications
Brand Name :
YT
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Ferrule Type :
Zirconia Ceramic
Attenuator Tolerance :
±0.5dB
Fiber Mode :
Single Mode, Multimode
Connector Type :
SC/FC/LC/ST/MU
Wavelength :
1260~1620(SM)
Return Loss :
≥50dB
Attenuation Range :
0-30dB
Repeatability :
1000 Times
Description
Low Attenuation Adjustable SC FC LC Fiber Optic Attenuator
SC/FC/LC/ST/MU Fixed low attenuation adjustable optical fiber attenuator
Product Description

Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified.
We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.

Parameter

Optical Performance M-F Plug Type F-F Adaptor Type
Testing Wavelength(nm) SM: 1310nm/1550nm 1310nm
MM: 850nm/1300nm
Attenuation Accuracy(dB)
1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value
Return Loss(dB) ≥50dB (PC) ≥50dB (PC)
≥60dB (APC) ≥60dB (APC)
Input Power (Max.) (mW) 300
Durability(dB) <0.2dB Typical, 1000 Matings
Operating Temperature(°C)
-40~+80
Storage Temperature(°C)
-40~+85

Key Features
· Bellcore Compliant
· Wavelength Independent
· Durability & Simple and Reliable Structure


Specifications
· Operating Wavelength: SM: 1310nm, 1550nm
· MM: 850nm, 1300nm
· Return loss: More than 55dB (UPC)
· Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)
· Polarization Dependent Loss: Less than 0.2dB
· Max. Optical Input Power: 200mW
· Operating Temp Range: -40~80°C


Applications
· l Telecommunication Networks
· l Local Area Network
· l FTTH and FTTx
· l Fiber Optic Sensors
· l Test & measurement
· l DWDM applications
