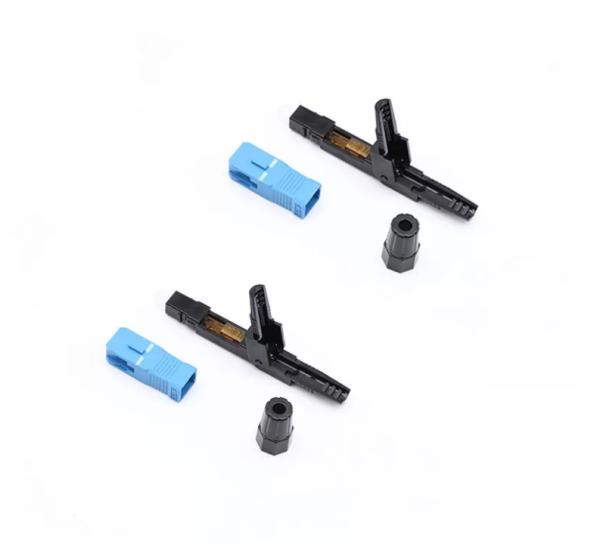

0.25dB 1550nm FTTH Fast Connector Flat Cable SC UPC Connector
0.25dB 1550nm FTTH Fast Connector Flat Cable SC UPC Connector
Specifications
Brand Name :
YT
Model Number :
SC APC Singlemode Fast Connector
Certification :
ISO, SGS, ROHS
Place of Origin :
china shenzhen
MOQ :
10 pcs
Price :
Negotiation
Payment Terms :
XTransfer T/T, Western Union, PayPal
Supply Ability :
5000 pcs/Month
Delivery Time :
3-7days
Product Name :
Fiber Optic Fast Connectors
Return Loss :
>=55dB
Insert Loss :
<=0.3dB
Fiber Type :
SM/MM
Connector Type :
SC/UPC
Application :
FTTH FTTB FTTX Network
Cable Type :
3x2mm Flat Cable, 2.0mm 3.0mm Cable
Description

FTTH SC / UPC Drop Cable Fiber Optic Fast Connector

Description

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Feature

1. Quickly assembly connetor

2. High return loss,low insert

3. Cost effective portable

4. Install quickly

5. Reliable and superior optical performance

Application

1. Patch panels

2. Distribution frames

3. Maintenance or emergency restoration of fiber networks

4. FTTH Outlets

5. Connection at the desk for LAN environments

Specification

Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ 60dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >5 N
Tighten Strength of Coating >10 N
Temperature -40~+85°C
On-line Tensile Strength Test (20 N) IL ≤ 0.3dB
Mechanical Durability(500 times) IL ≤ 0.3dB
Drop Test(4m concrete floor, once each direction,
three times total)		 IL ≤ 0.3dB

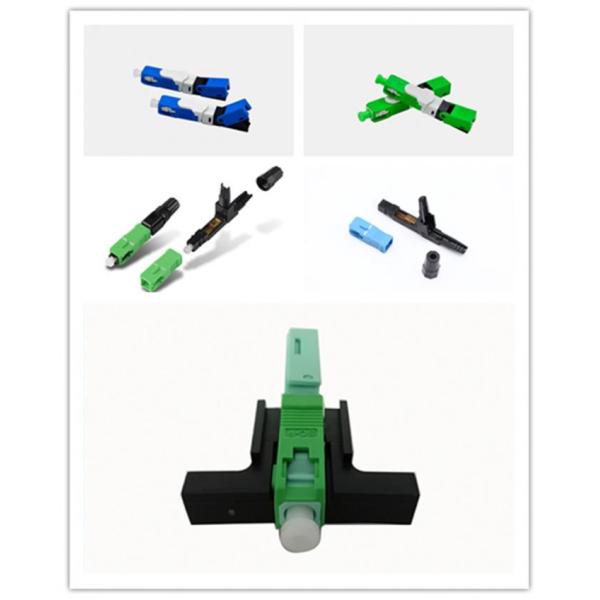

0.25dB 1550nm FTTH Fast Connector Flat Cable SC UPC Connector
